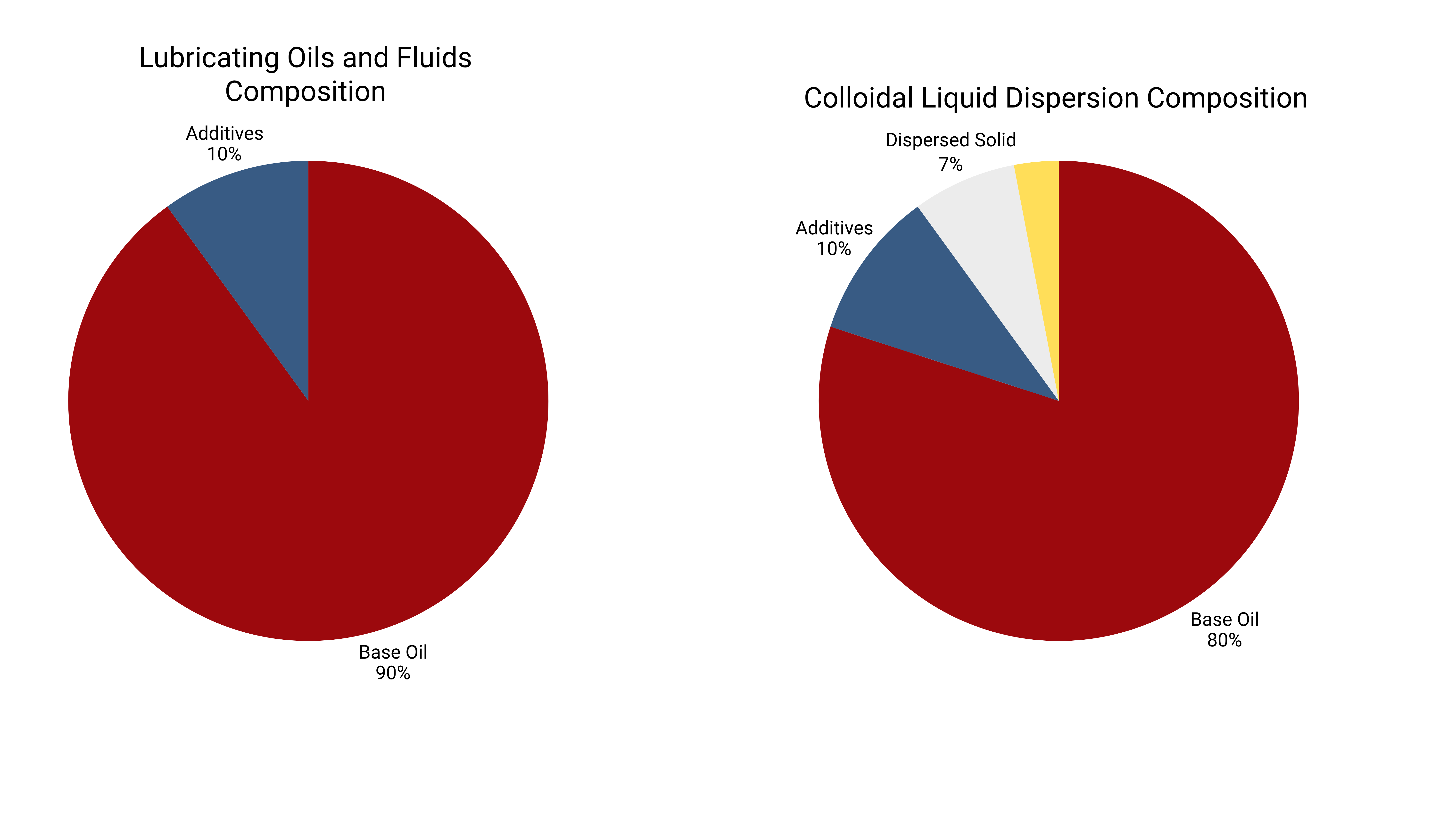

Anatomic Composition of Oil Formulations
Lubricating oils and liquid dispersions consist of three core components formulated to achieve target tribological properties.
Base Oil Matrix
75% – 99%
The base fluid supplies most of the volume and establishes liquid film thickness, cooling efficiency, flow dynamics, and basic hydrodynamic load capacity. Common families include refined mineral oil, hydrocracked mineral base stocks, PAO, esters, PAG, alkylated aromatics, silicones, PFPE, and vegetable-derived esters. A finished formulation may blend more than one family to balance viscosity, solubility, seal response, and cost.
Chemical Additive Package
1% – 20%
Additives typically work at far lower concentration than the base fluid but control decisive failure modes: antioxidants slow chemical aging, rust and corrosion inhibitors protect wet surfaces, anti-wear and EP additives form sacrificial or low-shear films, detergents and dispersants manage deposits and insoluble contamination, demulsifiers promote water separation while emulsifiers intentionally stabilize water-containing fluids, viscosity modifiers reduce viscosity change over temperature, pour-point depressants improve low-temperature flow, and antifoam agents control persistent foam. Additive balance matters, since one chemistry can compete with another for the surface or alter air, water, and filter behavior.
Dispersed Solid Phase
0.5% – 10% in dispersions
Solid-lubricant dispersions add a third design layer: the particle-plus-interface. Lamellar solids such as MoS2 and graphite shear along preferred planes; PTFE contributes low shear and transfer-film behavior; h-BN, tungsten disulfide, graphene-family materials, nanodiamond, and metal oxides appear in specialized products and research. Surfactants, polymeric dispersants, or particle surface treatments supply electrostatic or steric stabilization. Stability should be assessed over realistic time and temperature, not only from the appearance of a freshly sonicated sample, using checks such as sediment height, re-dispersibility, particle-size distribution, microscopy, centrifuge screening, UV-visible response, or zeta potential where applicable.
.png)
API Base Oil Classification Rules
Because the base oil constitutes 70% to 99% of a finished lubricant, its chemical purity and molecular structure dictate the baseline performance of the fluid, specifically its thermal stability, oxidation resistance, and low-temperature fluidity. The American Petroleum Institute (API) categorizes base stock oils into five groups based on refining methods, saturation levels, sulfur content, and viscosity index (VI).
| API Group |
Saturates (%) |
Sulfur (%) |
Viscosity Index (VI) |
Manufacturing & Structure |
| Group I |
< 90 |
> 0.03 |
80 to 119 |
Solvent refining; aromatic heavy hydrocarbon mixture. |
| Group II |
≥ 90 |
≤ 0.03 |
80 to 119 |
Hydrocracking & hydrotreating; lower aromatics. |
| Group III |
≥ 90 |
≤ 0.03 |
≥ 120 |
Severe isomerization hydrocracking; paraffinic synthesis. |
| Group IV |
100 |
0 |
130 to 180 |
Polyalphaolefins (PAO); synthesized oligomerization of 1-decene. |
| Group V |
Variable |
Variable |
Up to >220 |
All synthetics outside Group IV (esters, PAG, silicone, PFPE, AN). |
Group I: Legacy Mineral Oils
Chemistry: Manufactured using older solvent-refining processes, with a high percentage of unstable aromatic compounds and sulfur.
Engineering Characteristics: Poor oxidation stability and lower thermal limits, but strong natural solvency due to high aromatic content, which dissolves additives easily and causes elastomer seals to swell slightly, helping prevent leaks in older equipment.
Typical Applications: General-purpose circulating oils, older marine engines, heavily formulated metalworking fluids.
Group II: Modern Industrial Workhorse
Chemistry: Manufactured via hydrotreating and hydrocracking, introducing hydrogen gas under high heat and pressure to break down aromatics and remove sulfur.
Engineering Characteristics: With saturates at 90% or higher, these oils have a clear, near water-like appearance and better oxidation stability and fluid life than Group I. Reduced aromatic content lowers natural solvency, requiring specialized additive formulation.
Typical Applications: Modern hydraulic fluids (ISO VG 32–68), industrial gear oils, standard automotive engine oils.
Group III: Highly Refined "Synthetics"
Chemistry: Subjected to severe hydrocracking and catalytic dewaxing, heavily restructuring hydrocarbon molecules into stable, uniform paraffinic chains.
Engineering Characteristics: Rival true synthetics in performance, with a high viscosity index (120 or higher), meaning viscosity remains stable across wide temperature swings.
Typical Applications: High-performance compressor oils, premium turbine oils, top-tier automotive lubricants.
Group IV: Polyalphaolefins (PAO)
Chemistry: Fully synthetic compounds built by oligomerizing ethylene gas into 1-decene, which is then synthesized into PAO.
Engineering Characteristics: Because every molecule is uniform in size and shape, PAOs offer zero wax content (very low pour points, often below -50°C), strong high-temperature stability, and a high natural VI. Their main weakness is poor polarity, struggling to dissolve certain additives and potentially shrinking elastomer seals.
Typical Applications: Extreme-cold climate hydraulics, high-speed CNC spindles, heavy-duty synthetic gear oils in extreme thermal spans.
Group V: Specialty Synthetics
Chemistry: A catch-all category for base stocks that don't fit into Groups I through IV.
Engineering Characteristics: Since PAOs (Group IV) lack solvency and can shrink seals, formulators frequently blend 5% to 15% Group V esters into Group IV fluids to balance the formulation. Common sub-types include esters (diesters/polyol esters, highly polar with strong detergency and heat tolerance for jet turbines and high-temp oven chains), polyalkylene glycols (PAG, strong lubricity and very low friction, used in worm gear drives and refrigeration compressors), and silicones/PFPEs (extreme temperature stability, chemical inertness, radiation resistance).

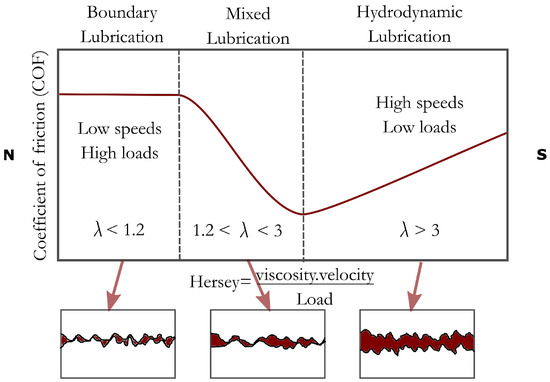

Lubricating Mechanisms & Stribeck Curve Dynamics
Liquid lubricant behavior is governed by the Hersey number (η · N / P), where η represents dynamic viscosity, N is rotational speed, and P is normal load. Performance spans three tribological regimes defined by the Film Thickness Ratio (Λ):
Λ = hmin / √(σ1² + σ2²)
Where hmin is minimum film thickness and σ1, σ2 are the surface roughness values of the mating parts.
Boundary Lubrication
Λ < 1.2
High loads, low speeds, or low viscosity. Surface asperities make direct contact. Dispersed solid particles (MoS2, PTFE) physically separate metal peaks to minimize adhesive friction.
Mixed Lubrication
1.2 ≤ Λ ≤ 3
Partial fluid film supports part of the load, while boundary additive films and solid dispersions support the rest.
Hydrodynamic / EHL
Λ > 3
Contacting surfaces are fully separated by a continuous fluid film. Elastohydrodynamic lubrication (EHL) occurs in non-conformal contacts (rolling element bearings, gear teeth) where localized pressures (1–3 GPa) exponentially increase oil viscosity, elasticizing the contacting metals.
ISO Viscosity Grade (ISO 3448) & Selection Guide
The ISO Viscosity Grade (ISO VG) system, defined by the International Organization for Standardization under ISO 3448, is the globally accepted classification system for industrial liquid lubricants. It gives engineers and maintenance professionals a standardized way to specify oil viscosity, ensuring the fluid provides adequate hydrodynamic film thickness under operating conditions. The ISO VG system categorizes industrial oils based on kinematic viscosity measured at 40°C (104°F), expressed in centistokes (cSt) or mm²/s.
Viscosity must be matched to the rotational speed of the bearing. Higher speeds require lower viscosities to prevent excessive fluid friction (viscous drag) and overheating. The DN factor is used to calculate this:
DN Speed Factor = dm × N
Where dm = (bore diameter + outer diameter) / 2 (mm), and N = rotational speed (RPM).
DN > 500,000 (High Speed)
Requires ISO VG 10 to 32
DN 100,000–500,000 (Medium Speed)
Requires ISO VG 46 to 150
DN < 100,000 (Low Speed)
Requires ISO VG 220 to 680
Higher loads compress the oil film. If viscosity is too low, the elastohydrodynamic (EHL) film collapses, leading to boundary contact.
- Light Loads: Lower viscosity (ISO VG 32–68) allows for better cooling and lower energy consumption.
- Heavy / Shock Loads: Higher viscosity (ISO VG 320–680) provides a thicker, more resilient fluid film.
ISO Viscosity Grade Classification Table
| ISO Grade |
Midpoint @ 40°C (cSt) |
Min (cSt) |
Max (cSt) |
Typical Application |
| ISO VG 2 |
2.2 |
1.98 |
2.42 |
Ultra-high-speed spindles (>100,000 RPM) |
| ISO VG 10 |
10.0 |
9.00 |
11.00 |
High-speed precision machine tool spindles |
| ISO VG 22 |
22.0 |
19.8 |
24.2 |
Airline lubricators, cold-climate hydraulics |
| ISO VG 32 |
32.0 |
28.8 |
35.2 |
Standard industrial hydraulics, air compressors |
| ISO VG 46 |
46.0 |
41.4 |
50.6 |
Heavy-duty mobile hydraulics, circulating systems |
| ISO VG 68 |
68.0 |
61.2 |
74.8 |
Slide-ways, lightly loaded gearboxes, vacuum pumps |
| ISO VG 100 |
100.0 |
90.0 |
110.0 |
Moderate gearboxes, large circulating oil systems |
| ISO VG 150 |
150.0 |
135.0 |
165.0 |
Enclosed industrial gearboxes, chain drives |
| ISO VG 220 |
220.0 |
198.0 |
242.0 |
Heavy-duty spur and helical gear drives |
| ISO VG 320 |
320.0 |
288.0 |
352.0 |
Heavy shock-load gearboxes, rolling mill drives |
| ISO VG 460 |
460.0 |
414.0 |
506.0 |
Low-speed/high-load gearboxes, worm drives |
| ISO VG 680 |
680.0 |
612.0 |
748.0 |
Heavy industrial worm gears, extreme low-speed drives |
| ISO VG 1000 |
1000.0 |
900.0 |
1100.0 |
Open gear compounds, heavy dragline components |
ISO 3448 only dictates viscosity at 40°C. Industrial equipment rarely operates exactly at that temperature, and oil thins as it heats up. If operating between 70°C and 100°C, the oil's Viscosity Index (VI), a dimensionless number indicating how much viscosity changes with temperature, should also be checked.
Advantages & Disadvantages
| Advantages |
Disadvantages & Limitations |
- High heat transfer and efficient cooling via fluid circulation.
- Flows into small contacts and can be pumped, filtered, and cooled.
- Flushes away wear debris, contaminants, and moisture.
- Wide operating viscosity range achievable via viscosity index improvers.
- Dispersions provide emergency dry-run survival capability under sudden fluid loss.
|
- Requires physical containment, complex dynamic sealing, and housings.
- Risk of fluid leakage leading to environmental contamination or fire hazards.
- Solid dispersions require strict particle size control to prevent filter plugging.
- Thermal-oxidative degradation requires periodic fluid monitoring and drain intervals.
|
Key Application Sectors & Machinery Components
Lubricating oils and liquid colloidal dispersions are selected for applications requiring continuous fluid flow, active thermal dissipation, hydrodynamic/elastohydrodynamic separation, and the flushing of wear debris. Adding dispersed solid micro-particles (MoS2, PTFE, graphite, h-BN) enhances performance in machinery subjected to frequent stop-start cycles, shock loads, or extreme temperature.
1. Power Transmission & Industrial Gear Systems
Enclosed Spur, Helical, and Bevel Gears: Neat synthetic oils (ISO VG 150 to 460) maintain an elastohydrodynamic (EHL) fluid film under steady-state operating conditions.
Heavy Mining & Steel Mill Drives: Colloidal MoS2 dispersions added to heavy gear oils protect gear tooth flanks against boundary welding during sudden shock loads, heavy impact forces, or low rotational speeds.
Worm Gear Drives: Synthetic polyalkylene glycol (PAG) neat oils provide a low sliding friction coefficient, reducing thermal friction generated by steel-on-bronze sliding contacts.
2. High-Speed Precision Equipment & Turbines
Machine Tool Spindles & Sewing Machines: Ultra-light neat synthetic fluids (ISO VG 2, 10, or 22) provide hydrodynamic surface separation with minimal viscous shear resistance, ensuring low running temperatures and maintaining sub-micron machining tolerances.
Steam & Gas Turbines: Group II/III mineral or PAO turbine oils (ISO VG 32 or 46) require rapid water-separating capability (demulsibility), low foaming propensity, and resistance to thermal oxidation over extended service lives, often exceeding 10,000 hours.
3. Hydraulic & Fluid Power Systems
Industrial & Mobile Hydraulics: High viscosity index (HV) anti-wear hydraulic fluids transmit mechanical force while lubricating high-pressure axial piston pumps, vane pumps, and control valves operating up to 350 bar.
Cleanroom / High-Precision Servo-Hydraulics: Fine-filtered neat synthetic esters provide flame resistance (HFDU fluids) and consistent pressure transmission without valve-sticking caused by varnish or sludge formation.
4. Extreme High-Temperature Conveyors & Processing
Ceramic Kilns, Glass Works, & Paint Curing Ovens: Synthetic polyol ester oils carrying sub-micron colloidal graphite or hexagonal boron nitride (h-BN) are fed directly to chain links and bushings operating from 200°C to over 500°C. The synthetic ester carrier wets the pin surfaces and evaporates cleanly without leaving tacky carbon residue, while the suspended graphite or h-BN remains behind as a dry, low-friction solid lubricant film.
_N_Low-O2-technology_1-2.jpg)
5. Metal Forming, Forging, & Break-In Operations
Machinery Running-In & Assembly: Engine oil or gear fluid blended with 3% to 5% colloidal MoS2 is applied during initial machinery commissioning. The solid particles burnish into metal micro-asperities, accelerating smooth surface bedding and preventing initial scoring.
Cold Heading & Heavy Metal Stamping: Water- or oil-based colloidal suspensions of graphite or MoS2 are sprayed directly onto forging dies to reduce friction during high-deformation metal displacement, increasing tool life and surface finish quality.
