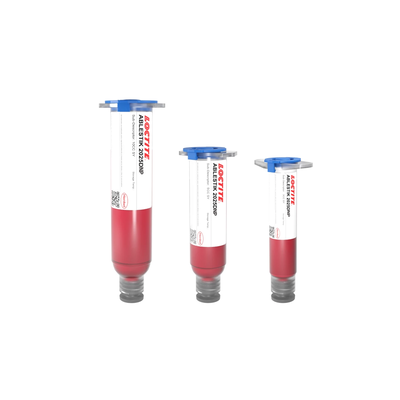

LOCTITE ABLESTIK 2025DNP
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Excellent dispense capabilities
- For mother die in array packaging
- 260ºC reflow capability for Pb-free applications
Product Description
LOCTITE® ABLESTIK ABP 2025DNP is a proprietary hybrid chemistry-based, red-colored, non-conductive die attach adhesive formulated for use in advanced semiconductor array packaging, including PBGA, Flex BGA, and stacking BGA configurations. As a PFAS-free alternative to ABLESTIK 2025D and QMI536NB, it delivers robust adhesion, excellent thermal stability, and reliable performance under high-temperature, high-humidity, and Pb-free reflow environments.
This heat-curable adhesive exhibits minimum bleed, strong hot/wet die shear strength, and superior electrical insulation, making it ideal for sensitive, high-reliability electronics.
Recommended cure schedule
- 30 minutes ramp to 175°C + 15 minutes @ 175°C in N2
2025DNP
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 30 days
Shipping in 12 weeks
Shipping in 35 daysPackaging
TDS, SDS & Technical Documents
- TDS LOCTITE ABLESTIK ABP 2025DNP issue 09-24
- LOCTITE ABLESTIK ABP 2025DNP 10CC SY NL-MSDS_UT_NL
- LOCTITE ABLESTIK ABP 2025DNP 10CC SY NL-MSDS_UT_EN
