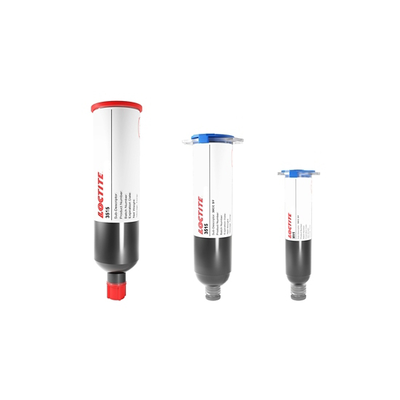

LOCTITE 3515
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Cornerbond
- Fast cure
- Self alignment of SMT components
Product Description
LOCTITE 3515 is a one component epoxy adhesive, designed to allow self-alignment of SMT components during the reflow operation. The adhesive is pre-applied to the board at the corners of the CSP pad site using a standard SMA dispenser, a process that speeds assembly by eliminating post-reflow underfill dispense and cure steps.
LOCTITE 3515 cures during the solder reflow phase to form a reliable bond, and contributes to improvements in handheld device reliability. LOCTITE 3515 cornerbond has excellent dispensing characteristics, good dot profile, and good on-board electrical characteristics. Reinforcement of CSPs with interposers or comerless arrays in portable electronic devices.
Cure Schedule
- 30 minutes @ 150 °C
- 5 minutes @ 180 °C
- 30 seconds @ 200 °C
- 15 seconds @ 220 °C
3515
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 29 days
No longer available
Shipping in 20 daysPackaging
TDS, SDS & Technical Documents
- 3515-EN
- 540459_MSDS_UT_US_EN
