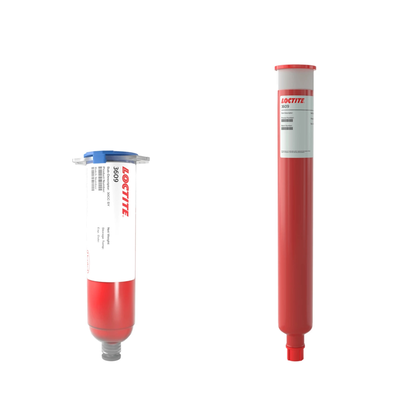

LOCTITE 3609
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Heat Cure
- One component
- Small SMD bonding
Product Description
LOCTITE 3609 is a dark red, viscous epoxy gel designed for bonding surface mounted devices to printed circuit boards prior to wave soldering. It is particularly suitable for applications where medium to high dispense speeds, high dot profile, high wet strength and good electrical characteristics are required. Particularly suitable for applications where medium to high dispense speeds, high dot profile, high wet strength and good electrical characteristics are required.
LOCTITE 3609 has been used successfully in lead free processes with water and alcohol based fluxes under conditions outlined in the Environmental Resistance section. It is designed for bonding surface mounted devices to printed circuit boards prior to wave soldering. This surface mount adhesive is used for small part bonding with a medium dispense speed of around 15,000-25,000 dots/h.
Recommended Cure:
- 90-120 seconds @ 150 °C
3609
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 29 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- 3609-EN
- LOCTITE 3609 NL-MSDS_UT_EN
- LOCTITE 3609 NL-MSDS_UT_NL
Technical Specifications
Electrical Properties
General Properties
Thermal Properties
