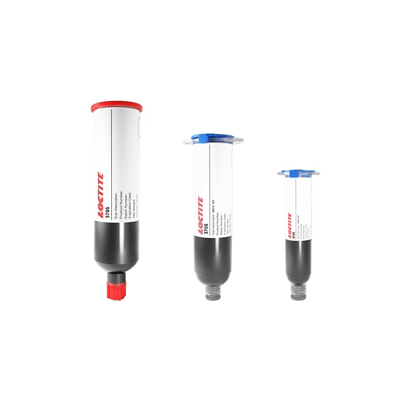

LOCTITE 3705
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- UV Cure
- One component
- Edgebond
Product Description
LOCTITE 3705 UV cure adhesive is designed for high throughput assembly operations. Its thixotropic nature reduced migration of liquid product after application to substrate.
LOCTITE 3705 cures fast and does not require any post curing steps. It is thixotropic with medium viscosity and exhibits good adhesion on a variety of substrates. This edgebonder is typically used to bond electronic components on a PCB.
UV Cure:
- 80 seconds @ 30 mW/cm²
3705
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 59 days
Shipping in 12 weeks
Shipping in 50 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE 3705-EN
- 1019674_MSDS_UT_US_EN
Technical Specifications
General Properties
Thermal Properties
Mechanical Properties
Physical Properties
Additional Information
UV/Light Cure Strengths
- One component
- No solvents
- Very fast room temperature cure
- Cure on demand-facilitates parts alignment
- Less equipment space and energy
- Fast through put-low WIP
UV/Light Cure Limitations
- Sensitive to light-requires special space lighting
- Oxygen inhibits cure
- Line of sight cure- shadowed areas require secondary cure
- High CTE- fillers used to lower CTE block UV/light
