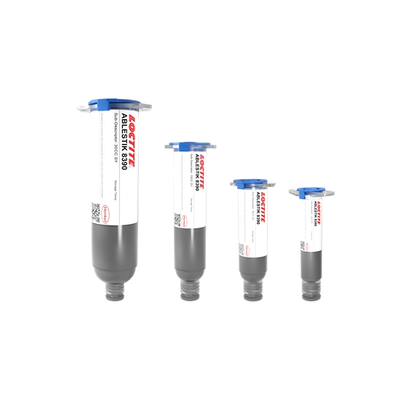

LOCTITE ABLESTIK 8390
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Thermally conductive
- Low condensable volatiles
- Compatible with palladium
Product Description
LOCTITE® ABLESTIK 8390 die attach adhesive has been formulated for use in high throughput die attach applications. It is suitable for die sizes up to 8 x 8 mm and is suitable for used with Palladium and Ag plated substrates.
LOCTITE® ABLESTIK 8390 is an electrically and thermally conductive epoxy adhesive that manages to offer minimal resin bleed and low condensable volatiles. It has excellent dispensability, minimal tailing and stringing and can snap cure in an in line oven .
Cure Schedule
- Please check the TDS for the Snap cure zones (80sec)
- 15 minutes @ 175°C
8390
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK 8390
- LOCTITE ABLESTIK 8390
