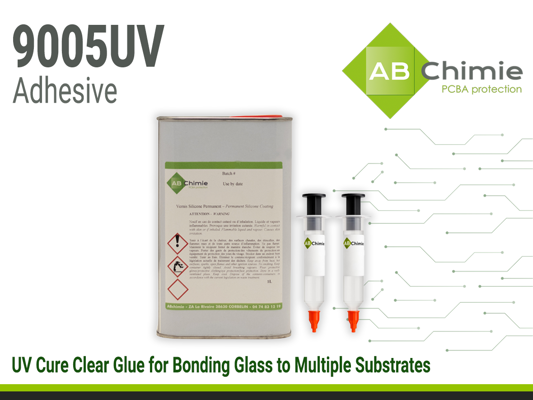

ABchimie 9005UV Glue
Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others
Main features
- One-component
- Fast UV Curing
- Glass to multiple substrate adhesion
Product Description
ABChimie® 9005UV Glue is a clear glue designed for the bonding of glass to multiple substrates, including glass, metals, and plastics. It is optically clear and doesn't experience yellowing. ABChimmie 9005UV Glue is ideal for applications requiring adhesion to glass and other substrates and optical transparency.
ABChimie 9005UV Glue is a urethane acrylate-based product with excellent adhesion to various substrates, especially glass. It cures rapidly under UV light, has zero VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 9005UV Glue is in full compliance with REACH and RoHS regulations.
Product Key Features
- Transparent urethane acrylate glue
- No yellowing
- Allows for thick, controlled application
- Fast UV cure (mercury lamp) for high-speed processing
- Solvent-free formulation (no VOCs)
Applications
- Components requiring optical transparency ex. glass, lenses, transparent covers.
- Adhesion of glass to various substrates, ex. glass to metal, glass to plastic, glass to glass etc.
- Laminated glass to glass ex. touchscreens, sensors
- Gap filling and bonding
- Printed circuit assemblies.
ABC-9005UV
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- ABchimie9005UV TDS
- ABchimie9005UV SDS
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Additional Information
Frequently Asked Questions About ABChimie® 9005 UV
What are typical applications for ABChimie® 9005 UV?
ABChimie® 9005 UV is a UV-curable glue designed for the bonding and protection of printed circuit board assemblies (PCBs) and electronic components in demanding manufacturing environments, including:
-
Automotive electronics (e.g., control units, sensors)
-
Industrial automation (e.g., motor drives, PLCs)
-
Consumer electronics (e.g., smart devices, wearables)
-
Other high-reliability electronic assemblies
What is the shelf life of ABChimie® 9005 UV?
ABChimie® 9005 UV has a shelf life of 12 months when stored at 5–30°C in tightly sealed, opaque containers. The product must be sealed away from excessive heat (>40°C). Before use, allow the product to equilibrate for 24 hours at 18–32°C for optimal performance. Due to settling, glue should be mixed before use.
What is the recommended curing method for ABChimie® 9005 UV?
ABChimie® 9005 UV is UV-curable and should be cured with a mercury lamp. The minimum UVA dose is 500 mJ/cm² for a 100 μm thickness. The LED-curable version is ABChimie® 9005 UV LED. Higher UVA doses do not negatively affect final properties.
Learn More About ABChimie® 9005 UV
ABChimie® 9005 UV is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable glue delivers rapid curing, excellent electrical insulation, and strong environmental resistance—ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.
Main Advantages of ABChimie 9005 UV
ABChimie® 9005 UV cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.
ABChimie® 9005 UV provides excellent mechanical protection. The hardness helps resist scratches, abrasion, and minor impacts, ensuring long-term stability of encapsulated components.
ABChimie® 9005 UV is formulated to resist yellowing over time, maintaining clarity and optical integrity even after prolonged UV exposure. This ensures that encapsulated components or coatings remain visually clear and do not discolor, ideal for displays, optical devices, and other applications where long-term transparency is critical.
ABChimie® 9005 UV bonds strongly to glass substrates, providing reliable adhesion on smooth, non-porous surfaces. This ensures durable protection for components mounted on or encapsulated against glass, making it well suited for applications such as displays, sensors, optical assemblies, and glass-based electronic modules.
How to Choose a Resin
Selecting the most suitable resin requires consideration of key factors:
- ✔ Norms & Compliance
- ✔ Environment / Exposure Conditions
- ✔ Repairability
- ✔ Electrical Performance
- ✔ Application Method
- ✔ Operating Temperature
Compliance You Can Trust ✅
ABChimie® 9005 UV meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:
- REACH Compliant
- RoHS 2011/65/EU Compliant
Curing Tip: ABChimie 9005 UV cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
Emission Spectrum of Mercury Lamp
Ref. Leistung / ref power ln % over wavelength in nm
Key Curing Properties
Mercury
200-400 nm
200 mJ/cm2
100 μm
Typical property values shown for reference only and should not be used as specifications.
Alternative to Mercury Lamp Curing of ABChimie 9005 UV
ABChimie 9005 UV is also available in the LED - version, which cures by LED Lamp.
ABChimie 9005 UV LED [Go to 9005 UV LED Product Page↗]
- Thixotropic resin
- Fluorescent under UV light
- Excellent adhesion to flexible substrates
- Immediate curing with UV LED exposure
Best suited for: High-speed process looking to use LED light for curing
