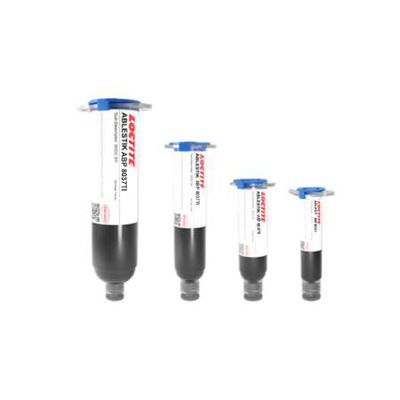

LOCTITE ABLESTIK ABP 8037TI
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- High-reliability LED manufacture
- High thermal conductivity
- Small die on Au-finish LF
Product Description
LOCTITE ABLESTIK ABP 8037TI silver-filled conductive adhesive is recommended for use in the attachment of integrated circuits and components onto metal leadframes and advanced substrates.
LOCTITE ABLESTIK ABP 8037TI silver-filled die attach adhesive paste is specifically designed to attach small diodes in high volume manufacturing. Even more specifically, it is the highest volume silver-filled die attach paste for high reliability LED attach and manufacture when using small die on Au-finished leadframes. Used in high-volume manufacturing throughout China and Malaysia.
LOCTITE ABLESTIK ABP 8037TI is similar to Loctite Ablestik ABP 8037T, with a minor raw material change that made it adjust its naming convention.
Cure Schedule
- 30 minute ramp to 175ºC, hold 30 minutes @ 175 °C
- 30 minute ramp to 150ºC, hold 30 minutes @ 150 °C
ABP8037TI
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 30 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE ABLESTIK ABP 8037TI
- LOCTITE ABLESTIK ABP 8037TI Halogen free
- MSDS 2086640 en_GB
- MSDS 2696726 en_GB
- LOCTITE ABLESTIK ABP 8037 TI
- LOCTITE ABLESTIK ABP 8037 TI NL-MSDS_UT_NL
- LOCTITE ABLESTIK ABP 8037 TI NL-MSDS_UT_NL (1)
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
Specific Characteristics:
- High Thermal Conductivity
- High volume diode (LED) manufacturing
- Completely supersedes ABP 8037T which has been discontinued
- Very good on small die
- Very good on gold (Au) finishing leadframes
