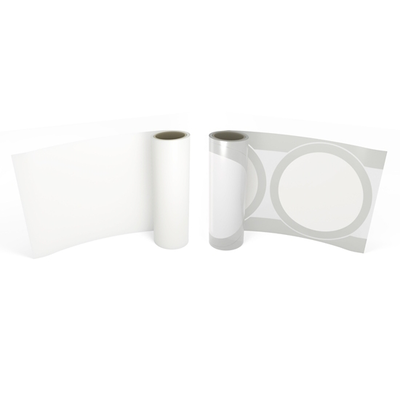

LOCTITE ABLESTIK CDF 515P
Harmonization Code : 7115.90.00.00 | Other articles of precious metal or of metal clad with precious metal : Other
Main features
- Electrically conductive
- Thermally conductive
- QFN, TQFP, eTQFP
Product Description
LOCTITE ABLESTIK CDF 515P, highly filled, conductive die attach adhesive is designed to provide high thermal and electrical conductivity in the attachment of integrated circuits and components onto metal leadframes. This adhesive exhibits strong adhesion to various wafer metallizations and leadframe finishes. It can be used in a variety of die sizes ranging from 3mm x 3mm to 8mm x 8mm .
LOCTITE ABLESTIK CDF 515P offers high MSL reliability, controlled fillet size and does not exhibit resin bleed out. It has good wetting and low warpage on large dies and is recommended for thin wafer handling applications. It comes in 15 and 30um and is typically used for QFN, TQFP and eTQFP package applications.
Cure Schedule
- 30 minute ramp from 25°C to 200°C, hold 60 minutes @ 200°C
- 30 minute ramp from 25°C to 175°C, hold 60 minutes @ 175°C
CDF515P
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 20 days
Shipping in 12 weeks
Shipping in 45 daysPackaging
TDS, SDS & Technical Documents
- ABLESTIK CDF 500-EN
- LOCTITE ABLESTIK CDF 515P8C8
- LOCTITE ABLESTIK CDF 515P8C8 NL-MSDS_UT_EN
- LOCTITE ABLESTIK CDF 515P8C8 10 CON PER ROLL NL-MSDS_UT_NL
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
Films work like the “household double sided tape”. We can quickly appreciate the benefit as we used a dry resin for this, that results in a no mess assembly and very even BLT. Standard thickness of our films is 15um and 30um.
If your Z-space is really critical and has to have a very low BLT, Film is the way to go. Yes, there will be the additional process of laminating the film underneath you wafers but after that its all the same as traditional die attach process.
CDF 500P - Die attach film property comparison
