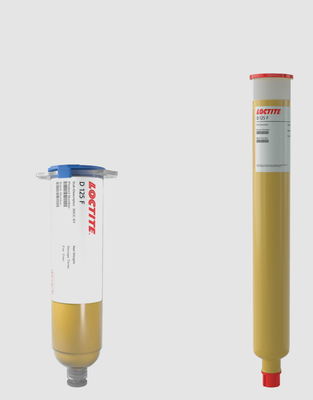

LOCTITE ECCOBOND D125 F DR
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low water absorption
- Low exotherm
- Non-sag
Product Description
LOCTITE D 125 F DR is a epoxy surface-mount adhesive designed for high-speed dispensing.
LOCTITE D 125 F DR is used in a wide array of applications, including chip capacitors, chip resistors, SOTs, SOICs, and PLCCs.
D125FDR
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 25 daysPackaging
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Additional Information
TYPICAL CURING PERFORMANCE
IR or Convection Conveyor Oven
20 minutes @ 100°C
7 minutes @ 110°C
2.5 minutes @ 120°C
1.5 minutes @ 150°C
Convection Box Oven
30 minutes @ 100°C
20 minutes @ 110°C
10 minutes @ 120°C
5 minutes @ 150°C
