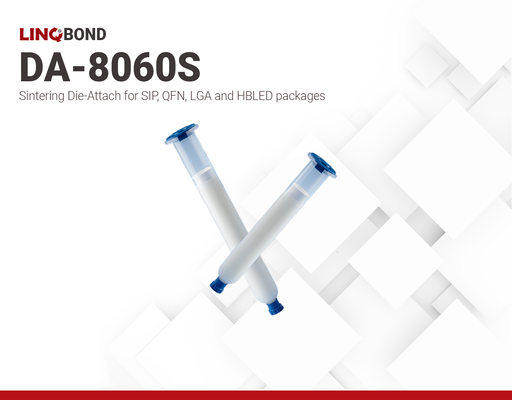

LINQBOND DA-8060S | Sintering Die-Attach
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- PFAS free
- Low Resin Bleed-Out (RBO)
- High thermal conductivity and adhesion to various leadframes
Product Description
LINQBOND DA-8060S is a single-component, pressure-less silver sintering die attach adhesive, known for its exceptional adhesion, high thermal conductivity, and high reliability. It performs excellently with various leadframes types, including Ag-spot plated, bare copper, PPF, and ceramic. Additionally, LINQBOND DA-8060S boasts exceptional workability and low Resin bleed out properties, making it ideal for high-volume semiconductor packaging applications.
LINQBOND DA-8060S is typically used as die attach for high power applications such as 5G, EVs, Industrial , Consumer electronics, Telecommunications, Aerospace, Defense and semiconductor packages such as SIP, QFN, LGA and HBLED.
Cure Schedule
-
Ramp to 130°C and hold for 30 min + ramp to 220°C and hold for 90 min
-
Ramp rate 5°C/min
-
DA-8060S
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
No longer available
No longer available
No longer availablePackaging
TDS, SDS & Technical Documents
- TDS_LINQBOND DA-8060S
