DK19 Red Insulating Coating Powder
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- DK19 Coating Powder
- Insulating, Epoxy based
- For low and medium voltage bus bars
Product Description
DK19 Industry standard epoxy coating powder for medium voltage (600V – 38kV) busbars and switchgear
DK19 is a high-performance, epoxy-based coating powder developed for the insulation of medium voltage (up to 38 kV) busbars where good arc resistance is critical to performance. DK19 has a high build rate, giving the busbar both high edge coverage and allowing the busbar to have the thickest possible coating with the fewest number of dips at the most critical place on the busbar. DK19 Red has a UL Relative Thermal Index (RTI) rating of 105°C, making it ideal for applications requiring high thermal stability. Used for over 20 years by major power distribution companies for medium-voltage busbar applications, DK19 Red provides a smooth surface appearance with high edge coverage. DK19 Red is UL recognized and has a particle size distribution that is tailored for application via a fluid bed process.
Advantages of DK15-0463 for Busbar Coating
- Uniform coating in excess of 5 millimeters (200 mils)
- Industry-standard for medium voltage busbars
- Best-in-class arc resistance

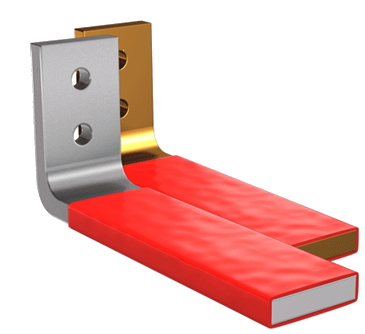

- Suitable for copper and aluminum bar
- Higher powder thickness build-up in fewer dips
- Rapid build rates to reduce cycle times
Typical applications and uses of {product_name} include:
- Medium Voltage (up to 38kV) Copper, Aluminum and Brass Busbars
- Switchgear Equipment for Power Distribution
DK0708
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- DK19
- EpoxyCoatingpowdersHandlingGuide
Technical Specifications
No specifications available.
