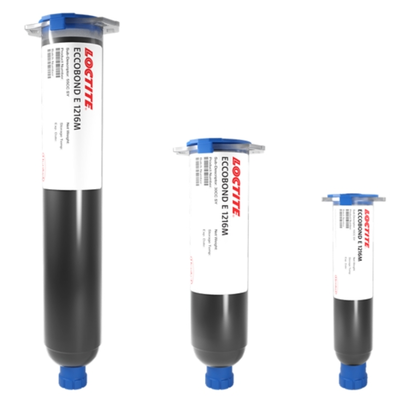

LOCTITE ECCOBOND E 1216M
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Snap Cure
- Non anhydride curing chemistry
- Excellent adhesion and strength
Product Description
LOCTITE ECCOBOND E 1216M is an innovative epoxy capillary flow underfill, designed for high-volume assembly operations requiring a very fast flowing underfill that fully cures in a single reflow cycle, but is stable enough to be easily shipped and used in large-volume cartridges (up to 20 oz). That's because this is a board-level underfill for underfilling larger components so it is typically dispensed in relatively larger volumes.
LOCTITE ECCOBOND E 1216M passes NASA outgassing standards and is specifically formulated to eliminate anhydride-type curing agents for those users who prefer to work with anhydride-free products.
Cure Schedule
- Snap or Inline Cure - 3 minutes @ 165°C
- Fast Cure - 4 minutes @ 150°C
- Low-Temperature Cure - 10 minutes @ 130°C
E1216M
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 55 days
Shipping in 12 weeks
Shipping in 40 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE ECCOBOND E 1216M
- LOCTITE ECCOBOND E 1216M SDS
- LOCTITE E 1216M 30CC EN_CH
