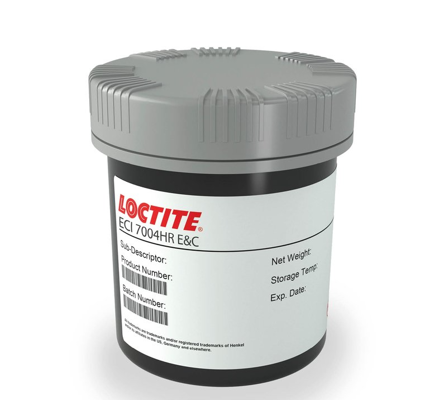

LOCTITE ECI 7004HR E&C

LOCTITE ECI 7004HR E&C is a screen printable, high resistance carbon solvent-based ink. It is specifically designed to allow for blending with NCI 7002 E&C to obtain the required resistance. The blended material will provide sheet resistance adjustments required in the manufacture of force sensors with slow responsive sensitivity profiles. With a maximum operating temperature of 105ºC and a heat drying cure mechanism, this ink exhibits robust performance even under challenging conditions.

LOCTITE ECI 7004HR E&C is often used to create printed resistors, including froce sensing resistor (FSR) elements, on polyester foil. With the LOCTITE NCI 7002 E&C the resistance values can be adjusted in the range of 5000 till 500.000 ohm/ sq /25 um.

LOCTITE ECI 7004HR E&C finds optimal compatibility with key substrates such as treated polyester and polyimide, ensuring consistent and reliable performance across a spectrum of assembly applications. Moreover, this ink is specially engineered to facilitate blending with LOCTITE NCI 7002 E&C, allowing for sheet resistance adjustments essential for the manufacture of force sensors with slow responsive sensitivity profiles. Additionally, LOCTITE ECI 7004HR E&C is recommended for use in the assembly of printed temperature sensors, further underscoring its versatility and adaptability in addressing diverse industry needs.
