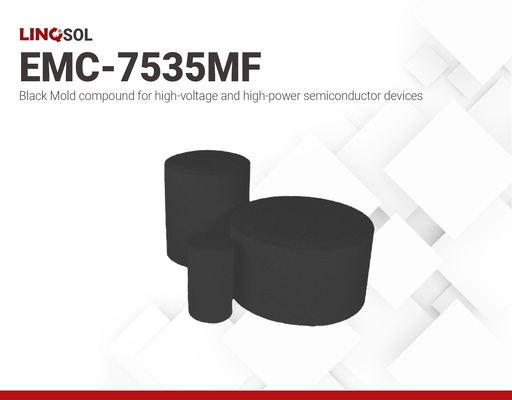

LINQSOL EMC-7535MF | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Green molding compound
- Designed for high-power TO packages
- High Tg, low water absorption, low modulus, and excellent thermal stability
Product Description
LINQSOL EMC-7535MF is a green epoxy molding compound specifically developed for high-voltage and high-power semiconductor devices. It offers low modulus to meet low-stress requirements. With a high glass transition temperature (Tg = 215 °C), minimal moisture absorption, a high comparative tracking index (CTI = 600 V), and a UL 94 V-0 flammability rating highlighting its adherence to stringent safety standards for high-power semiconductor applications, EMC-7535MF guarantees strong performance and outstanding reliability.
Overall, LINQSOL EMC-7535MF seamlessly integrates advanced material properties, safety compliance, and superior performance, precisely meeting the stringent demands of high-power semiconductor components such as TO packages. LINQSOL EMC-7535MF finds its niche in high-voltage and high-power discrete packages and power modules, including but not limited to IGBT, TO220, TO247, and other surface mount devices.
LINQSOL EMC-7535MF proved its reliability in customers' small SiC discretes—zero voids, zero delamination on Ni-plated Cu leadframes—even after thermal cycles (−40 °C ↔ +125 °C).
Key Features:
- High-temperature stability with high Tg (215 °C)
- Excellent electrical stability due to low ion content and mobility
- Low stress with low CTE (9 ppm) and low modulus (15GPa)
- Low moisture absorption and low mold shrinkage (0.22%)
- Halogen-free (does not contain Br, Sb, P)
- UL 94 V-0 Flammability
Application: SiC MOSFETs; TO-package Devices, IGBT Modules
EMC-7535MF
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- SDS_LINQSOL EMC-7535MF
- TDS_LINQSOL EMC-7535MF
Technical Specifications
General Properties
Electrical Properties
Chemical Properties
Thermal Properties
Mechanical Properties
Curing Conditions
Physical Properties
Additional Information
Processing Instructions
- Before use, let LINQSOL EMC-7535MF reach room temperature for 24 hours. Keep the bag unopened and stored in a dry location with a relative humidity of ≤50% during thawing to prevent moisture contamination.
- Use the materials within 72 hours after removing the container from cold storage.
Storage and Handling
LINQSOL EMC-7535MF is available in pressed pellets in a wide range of sizes to meet specific customer needs. To ensure product integrity, keep it away from oxidizing materials. For long-term storage, maintain a cold environment. The shelf life at 5 °C is 183 days.
