LINQSOL EMC-9012 | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Green epoxy molding compound
- Designed for Ball Grid Array (BGA) and Land Grid Array (LGA) packages.
- Ultra low water absorption, low stress, and excellent reliability performance.
Product Description
LINQSOL EMC-9012 is a green epoxy molding compound specifically developed for the encapsulation of Ball Grid Arrays (BGA) and Land Grid Array(LGA) packages. Its long spiral flow at 175 °C satisfies the moldability requirement for BGA and LGA molding. LINQSOL EMC-9012 series has low modulus that meets low-stress requirements. Additionally, with a UL 94 V-0 flammability rating and ultra low water absorption, EMC-9012 guarantees excellent performance and outstanding reliability.
LINQSOL EMC-9012 is deliberately formulated without the inclusion of substances prohibited by the European Union RoHS and REACH. Overall, LINQSOL EMC-9012 series seamlessly integrates advanced material properties, safety compliance, and superior performance to deliver a reliable solution for semiconductor device encapsulation.
Packaging
TDS, SDS & Technical Documents
- SDS_LINQSOL EMC-9012
- TDS_LINQSOL EMC-9012
Technical Specifications
General Properties
Chemical Properties
Physical Properties
Thermal Properties
Curing Conditions
Additional Information
| PROPERTY | UNIT | EMC-9012 | EMC-9012H |
|
Color |
– |
Black |
Black |
|
Filler content |
% |
89 |
87 |
|
Filler cut size |
µm |
55 |
53 |
|
Specific gravity |
– |
2.01 |
1.99 |
|
Spiral flow at 175 °C |
cm |
165 |
165 |
|
Ion content Chloride (Cl–) concentration Sodium (Na+) concentration |
ppm |
6 |
7 4 |
|
Electrical conductivity of extract |
µS⋅cm–1 |
31 |
30 |
|
Flexural strength |
MPa |
145 |
170 |
|
Flexural modulus |
GPa |
24 |
21.2 |
|
Adhesion Strength to Cu at RT Before MSL3 Preconditioning After MSL3 Preconditioning |
MPa MPa |
6.5 6.4 |
- - |
|
Glass transition temperature |
°C |
133 |
158 |
|
Coefficient of thermal expansion, α1 |
ppm/K |
8 |
10 |
|
Coefficient of thermal expansion, α2 |
ppm/K |
35 |
40 |
|
Gel time at 175 °C |
sec |
45 |
40 |
|
Flammability |
UL-94 |
V-0 |
V-0 |
LINQSOL EMC-9012 Storage and Handling

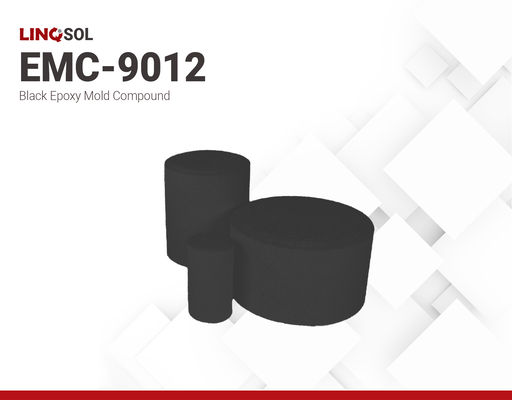

LINQSOL EMC-9012 is available in pressed pellets in a wide range of sizes to meet specific customer needs. To ensure product integrity, keep it away from oxidizing materials. For long-term storage, maintain a cold environment. The shelf life when stored below 5 °C is 183 days.
Please note that the provided information is based on available data and typical conditions. For specific applications and detailed test results, refer to the actual test data and conduct appropriate certifications.
