LOCTITE ECCOBOND EO1062
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low flow
- Non conductive
- Excellent reliability
Product Description
LOCTITE ECCOBOND EO 1062 is designed to pass 1,000 hours of temperature/humidity/bias testing and thermal cycling up to 125°C. Exceptional viscosity stability at 25°C provides easier control of shot size using conventional time/pressure dispensing equipment.
Cure Schedule
- 4 to 6 hours @ 125°C - Robust non-stress sensitive components
- 3 hours @ 140°C. - Stress sensitive components
EO1062
1. Select Package Type
2. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 50 days
Shipping in 12 weeks
Shipping in 50 days
Shipping in 50 days Shipping in 12 weeks Shipping in 50 daysPackaging
Please select Package Type and Package Size before adding your product to your cart.
TDS, SDS & Technical Documents
- ECCOBOND EO 1062-EN
- 397695_MSDS_UT_NL_NL
Technical Specifications
General Properties
Pot Life Pot Life
600 hours Specific Gravity Specific Gravity
1.78 Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
125 °C Electrical Properties
Volume Resistivity Volume Resistivity
1.90000000000000 Ohms⋅cm Physical Properties
Viscosity Viscosity
64,000 mPa.s Recently viewed products

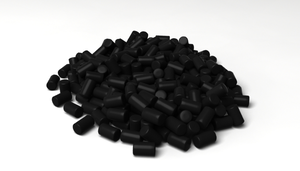

Hysol GR360A-ST | Black Epoxy Mold Compound
