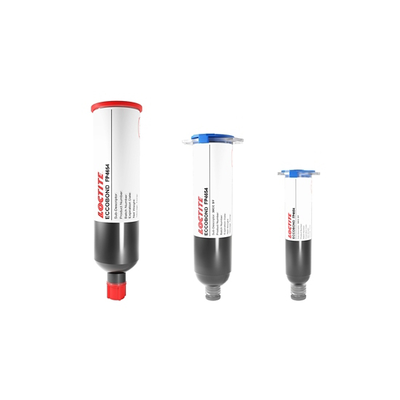

LOCTITE ECCOBOND FP4654
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- High purity
- Self levelling
- Low stress
Product Description
LOCTITE® ECCOBOND FP4654 is a low stress, Fill Encapsulant designed for larger cavity-fill or dam-and-fill applications. It is self levelling, jettable and provides an excellent thermal stability.
LOCTITE® ECCOBOND FP4654 has one of the lowest CTE α1 among the series (13ppm) and is our closest "mold compound" simulator with the highest (80%) Silica filler loading.
Recommended Cure Schedule
- 30 minutes @ 125°C plus
- 90 minutes @ 165°C
FP4654
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 34 days
Shipping in 12 weeks Shipping in 12 weeks Shipping in 34 daysPackaging
Please select Package Type before adding your product to your cart.
TDS, SDS & Technical Documents
- LOCTITE ECCOBOND FP4654
- LOCTITE ECCOBOND FP4654
Technical Specifications
General Properties
Pot Life Pot Life
72 hours Specific Gravity Specific Gravity
1.85 Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
146 °C Physical Properties
Viscosity Viscosity
32,000 mPa.s
