Hysol GR180T | White Epoxy Mold Compound
Harmonization Code : 3907.30.00.15 | Epoxide resin, halogen-free
Main features
- Transmitting compound
- High reliability
- Good workability
Product Description

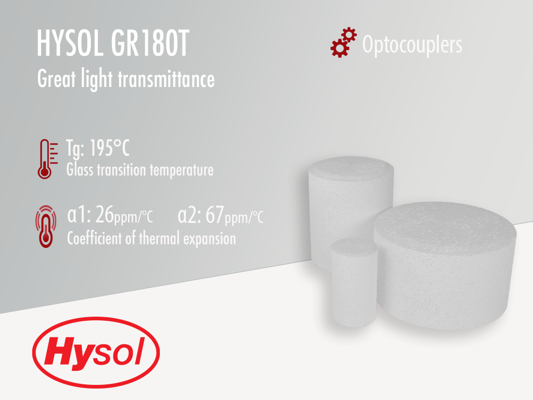

Hysol GR180T is a white, transmitting epoxy molding compound used for optical applications. This crystal silica filled (70%) product has been specifically designed to improve light transmittance and workability for optocouplers also knows as photo-couplers, optical isolators, or opto-isolators.
Hysol GR180T cures with heat and has been developed to be workable for transfer molding processes. It has been formulated to provide the best possible moldability for a wide range of molding process parameters.
GR180T
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- GR180T LDS Aug 2018
Technical Specifications
General Properties
Chemical Properties
Physical Properties
Thermal Properties
Curing Conditions
Additional Information
Storage
Store product in the unopened container in a dry location. Storage information may be indicated on the product container labeling.
Optimal Storage: 5°C or below, in closed containers. After removal from cold storage, the material MUST be allowed to come to room temperature, in the sealed container, to avoid moisture contamination. The suggested waiting time for a standard 15 kg carton box is 24 hours.
