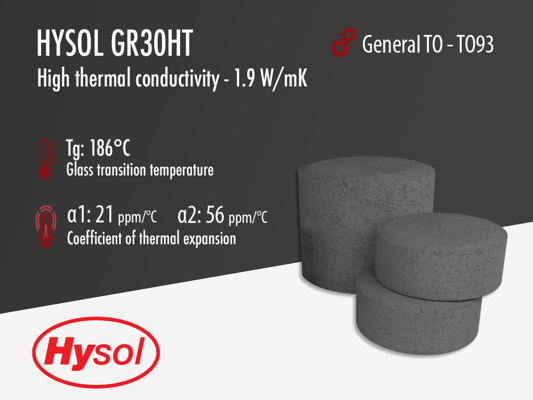

Hysol GR30HT | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- High Thermal Conductivity GR30
- Designed for TO92 and TO220 packages
- Excellent reliability under high temperature and bias
Product Description
This product is no longer supplied. It has been replaced by GR350HT
Hysol GR30HT is a high thermal conductivity version of GR30. It is a black semiconductor-grade epoxy molding compound (duroplast) designed for the encapsulation and protection of TO92, TO3P, TO220 and TO247 power devices. Once molded and post-mold cured, this product provides optimum protection and reliability for these semiconductor devices. Compared to the standard GR30 version, which has a thermal conductivity of 0.95 W/mK, GR30HT boasts more than twice as much thermal conductivity with 1.95 W/mK while also maintaining the high performance and moldability enhancements over the GR300 roots.
Hysol GR30HT is an environmentally "green" product, meaning that it doesn't contain any bromine, antimony or phosphorus flame retardants. Previous MG-series EMC dominated the space for power semiconductors but used halogen-containing flame retardants. This next generation epoxy mold compound replaces these older generation products. This material is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature on Nickel or Nickel-plated leadframes. It also achieves UL 94 V-0 Flammability at 1/8 inch (3.18mm) thickness.
GR30HT
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol GR30 HT
- Hysol GR30 HT SDS
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Curing Conditions
Additional Information
Designed for TO220 & TO247 devices
TO220 and TO247 are big, bulky packages, so molding these products with a standard mold compound is fairly easy without using any fine fillers. The trouble with these packages however is that epoxy mold compounds used typically fail High Temperature Reverse Bias (HTRB) testing, which exposes the device to humidity and temperature while the device is under BIAS. Devices often experience "gate leakage" under these conditions and fail catastrophically.
Furthermore, these devices are often used using a Nickel (Ni) leadframe, which is very difficult to adhere to. Therefore, epoxy moldng compound must have a very good adhesion to Nickel to achieve MSL1 preconditioning.

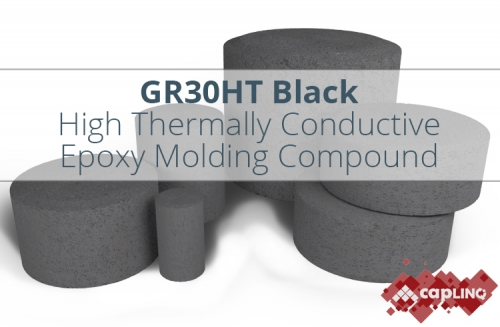

GR30HT Hysol High Thermal Conductivity EMC for Power Modules and TO Packages
