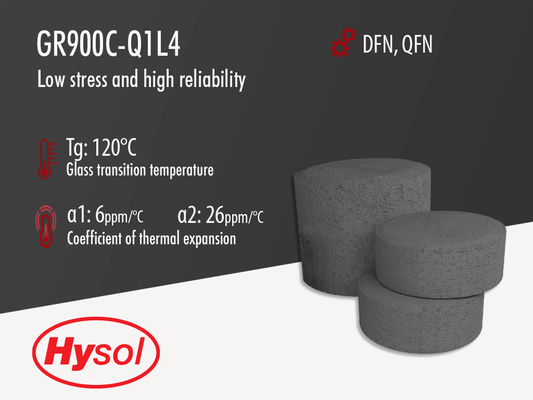

GR900 | QFN Epoxy Molding Compound
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Low stress and moisture absorption
- High adhesion
- Low moisture absorption
Product Description
Hysol GR900 is a green molding compound specifically developed for DFN/QFN MSL1 applications. It's designed to provide exceptional performance and reliability. The compound meets the UL94V-0 flammability standard at a thickness of 1/8 inch.
Product Key Features
- Halogen-free
- Low stress — Minimizes stress on delicate electronic components, enhancing long-term reliability.
- High adhesion — Provides a strong bond to the substrate, preventing delamination.
- Low moisture absorption — Reduces the risk of moisture-related defects.
- High reliability — Ideal for demanding applications where durability and performance are critical.
Applications
- DFN/QFNMSL1 Applications
GR900
1. Select Pellet Size
2. Select Pellet Weight
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksPackaging
Please select Pellet Size and Pellet Weight before adding your product to your cart.
TDS, SDS & Technical Documents
- GR900_GR900H_GR900C_SDS
Technical Specifications
General Properties
Filler Content Filler Content
89 % Filler Size Cut Filler Size Cut
53 µm Specific Gravity Specific Gravity
2.00 Electrical Properties
Volume Resistivity Volume Resistivity
45e15 Ohms⋅cm Physical Properties
Spiral Flow @ 175°C Spiral Flow @ 175°C
50 cm Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
120 °C Thermal Conductivity Thermal Conductivity
0.9 W/m.K
