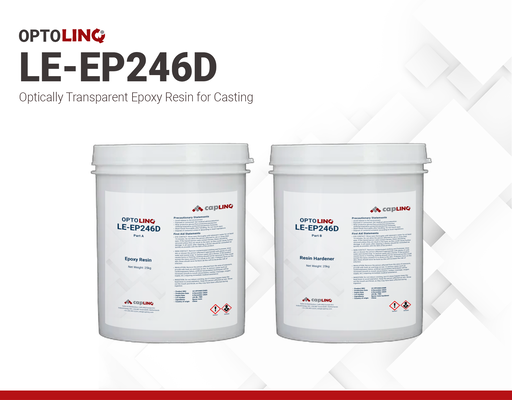

OPTOLINQ LE-EP246D | Optically Transparent Epoxy Resin
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low working time and viscosity
- Perfect surface gloss
- Good chemical resistance
Product Description
OPTOLINQ LE-EP246D is a two-component, low viscosity epoxy with excellent handling properties, chemical resistance, and high-gloss finish. It is ideal for potting, casting, sealing, encapsulation, and adhesive applications in electronic components, as well as for general industrial uses requiring extended work life.
The hardener of LE-EP246D does not form insoluble, white solids even after being exposed to air. The cured surface remains oil-free while maintaining excellent gloss retention. Additionally, OPTOLINQ LE-EP246D offers excellent electrical insulation properties under high humidity conditions, withstands exposure to a wide range of chemicals and solvents, and complies to RoHS 2011/65/EU Directive.
Applications
- Potting, casting, and encapsulation of electronic components
- General industrial sealing and coating applications
- Adhesive for transparent, chemical-resistant assemblies
- Applications requiring extended work life, chemical resistance, and optical clarity
LE-EP246D
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- OPTOLINQ LE-EP246D
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Mechanical Properties
Chemical Properties
Physical Properties
Additional Information
LE-EP246D Additional Technical Specifications
| Property | Value | Unit |
|
Spectral Transmission |
||
|
at 1,200-4,000 nm at 900-1,200 nm at 550-900 nm |
80 80
|
% |
|
Toughness |
5 |
J/m2 |
|
Notched Izod Impact Strength |
5.9 |
J/m |
LE-EP246D Recommended Curing Conditions
| Property | Value | Unit |
| Mixing Ratio (A:B) | 100:33 | by weight |
| Pot Life (25℃) | 8 | hour(s) |
| Through Cure Time (25℃) | 5-7 | day(s) |
| Through Cure Time (80℃) | 3 | hour(s) |
