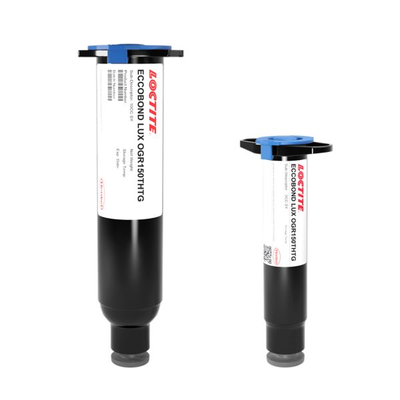

LOCTITE ECCOBOND LUX OGR150THTG
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Non conductive
- Photocurable
- Cures in shadowed areas
Product Description
LOCTITE ECCOBOND LUX OGR150THTG photocurable, acrylate adhesive is designed for high throughput optoelectronic assembly operations. It is a low viscosity, transparent, dual cure acrylate (UV and heat) for cavity fill of test ICs.
LOCTITE ECCOBOND LUX OGR150THTG contains a secondary thermal cure mechanism for applications that contain shadowed areas where light is unable to penetrate. The secondary thermal cure can be done in conventional box or convection conveyor ovens.
UV Cure
- UV 365 nm with 110 mW/cm²at the bondline
Secondary Thermal Cure
- 1 hour @ 100°C or
- 2 hours @ 85°C
LUXOGR150THTG
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 18 days
Shipping in 12 weeks
Shipping in 40 daysPackaging
TDS, SDS & Technical Documents
- ECCOBOND LUX OGR150THTG-EN
- LOCTITE ECCOBOND LUX OGR150THTG SDS - en
- LOCTITE ECCOBOND LUX OGR150THTG SDS - NL
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
