MCL-C10 | Melamine Compression Cleaning Material

Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other

Melamine Compression-Grade Mold Cleaning Compounds

Main features

  • 0.07% Formaldehyde
  • Compression grade
  • Suitable for transfer mold equipment

Product Description

MCL C10 is a compression-grade melamine mold cleaning material designed for cleaning transfer molding equipment and epoxy molds. While more rigid than the rubber cleaning solutions it is able to go into the deepest corners of the mold removing hidden and hard to approach stains. This product is applied by manually laying an appropriate amount of product on top of the mold and applying heat and pressure (compression). A typical schedule is 2 - 5 minutes @ 150 - 190°C with 10tons clamping pressure for a good result. It is very easy and effective to handle so it requires only ~ 3 shots to clean all stains and residues for most cleaning processes.

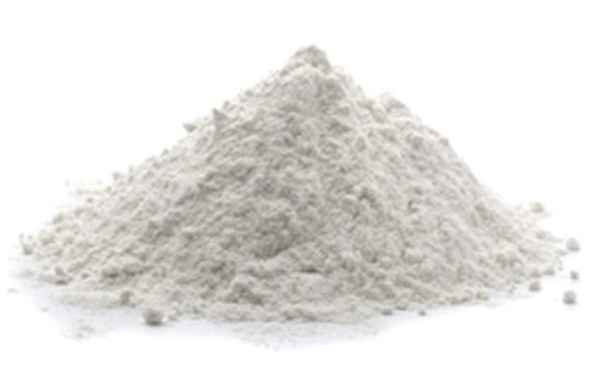

MCL-C10 can be supplied in loose powder if you want to pelletize yourself, in granular form and potentially in 5 x 5cm melamine cleaning pellets with a V groove break point to make it easier to break, lay down and apply on the mold. MCL-C10 has almost nonexistent amounts of Formaldehyde (0.02 - 0.07%). This proven formulation cleans very well without being toxic to the people involved in the process.

Product Family

MCL-C10

1. Select Package Type
2. Select Product Form
3. Select Pellet Size
Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Product availability
US Shipping in 8 weeks
CA Shipping in 8 weeks
EU Shipping in 8 weeks
Packaging
Please select Package Type, Product Form and Pellet Size before adding your product to your cart.
TDS, SDS & Technical Documents
  • ChemLinq MCL C10 White Series EU MSDS (1)
    English (Safety Data Sheet (SDS))
  • CHEMLINQ MCL-C10 Technical data sheet
    English (Safety Data Sheet (SDS))

Technical Specifications

General Properties
Color Color
White
Density (g) Density (g)
1.3 g/cm3
Specific Gravity Specific Gravity
1.5
Thermal Properties
UL 94 Rating UL 94 Rating
V0
Other Properties
RoHS Compliant RoHS Compliant
Yes
Physical Properties
Spiral Flow @ 175°C Spiral Flow @ 175°C
7.62 cm

Additional Information

Compression mold cleaning for transfer equipment? Is this a typo?

Don't be confused with compression grade mixed up with transfer mold. Cleaning process and terminology is slightly different from molding. A compression cleaning compound is literally compressed on top of a transfer mold. It might sound confusing but that's industrial terminology for you.
