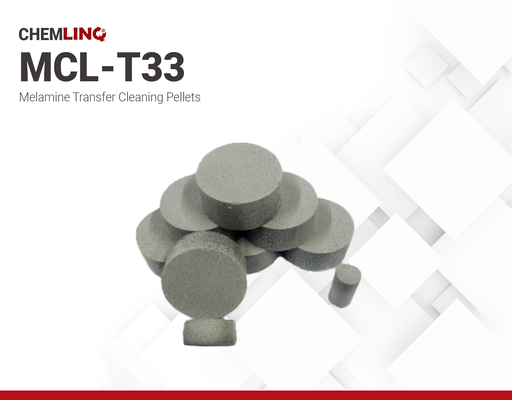

MCL-T33 | Melamine Transfer Cleaning Tablet
Harmonization Code : 3909.20.10 | Melamine Formaldehyde Resin
Main features
- Transfer grade
- Designed for semiconductor molds
- High adhesive strength
Product Description
CHEMLINQ MCL-T33 is a transfer-type formaldehyde-free melamine mold cleaning pellet designed for cleaning transfer molding equipment and epoxy molds. This melamine based cleaner is specially designed for cleaning Epoxy mold compound (EMC) residue from Packaging molds used for the encapsulation of semiconductors and IC packaging. It is a proven and widely used mold cleaning material that has been used in the industry for more than 20 years.
MCL-T33 has excellent cleaning abilities with a melamine resin system that exhibits high adhesive strength and assists in capturing the stains and residues from the molding equipment. Its improved workability and excellent cleaning performance reduce the total cleaning time and make it a great drop-in solution for transfer cleaning processes. Contact us for pellet sizes and weight.
MCL-T33
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- CHEMLINQ MCL-T33 SDS.docx
- CHEMLINQ MCL -T33 _ TDS
Technical Specifications
General Properties
Curing Conditions
Physical Properties
Additional Information
MCL-T33 Package types
| Property | Mini Pellets | Large Pellets | Units |
| Diameter | 13, 14, 16, 18, 20 | 40, 48, 50 | mm |
| Weight | 2.8 - 18 | 30 - 100 | g |
Directions for Use
Cleaning with melamine transfer compounds can be introduced in multiple steps of the cleaning process, depending on your molding process.
- Pre-heat the mold to standard operating temperature. Ensure that debris and other contaminants have already been removed.
- Add appropriate number of MCL-T33 pellets into the mold cavity. The amount of pellets added vary per mold size and level of contamination.
- Seal the mold and start a standard transfer molding cycle. The heat and pressure during the cycle activate the melamine cleaning compound, allowing EMC residues to be dislodged.
- Remove the melamine cleaning pellets and inspect the mold surface. If there are still residues on the surface, repeat the process or use CHEMLINQ Rubber Cleaning Sheets.
Storage conditions
CHEMLINQ MCL T33 Melamine Cleaning tablets have a shelf life of 12 months if they are stored in a cooled environment. Work life is 4 days after taking them out of storage.
