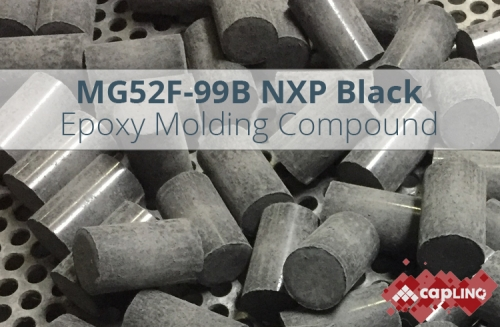

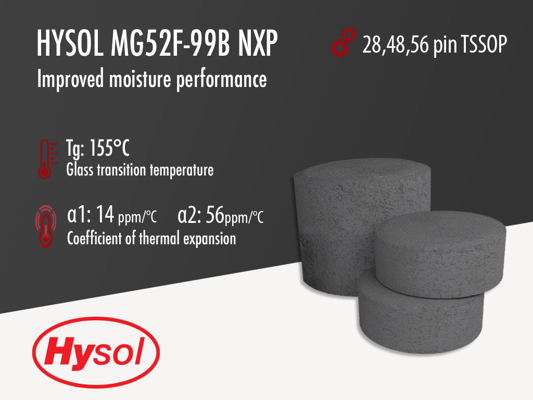

Hysol MG52F-99B NXP | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- MSL 1 260°C
- Ideal for Cu, & Pd plated leadframes
- 28, 48 and 56 pin TSSOP
Product Description
Hysol MG52F-99B NXP is a high productivity molding compound, designed for high volume encapsulation of surface mount devices. MG52F-99B NXP is applicable for devices having chip dimensions up to 1 centimeter (400 mils) square. Various versions are available including MG52F. MG52-99B NXP which is designed to provide much improved moisture performance after preconditioning. It can be applied using both conventional and automold equipment.
MG52F-99B NXP was designed for and passed qualification testing on 28, 48 and 56 pin TSSOP packages and has been used in production for more than 20 years. These packages have a copper leadframe with palladium plating. This material is designed to achieve JEDEC Level 1 requirements at 260°C reflow temperature on copper based, palladium-plated leadframes. Hysol MG52F-99B NXP meets UL 94 V-0 Flammability at 1/8 inch (3.18mm) thickness.
MG52F-99B NXP has high adhesion to a wide range of substrates including Nickel and Palladium, Low stress, fast cure and a large operating window, ideal for low wire sweep molding.
MG52F-99B NXP
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Electrical Properties
Chemical Properties
Physical Properties
Thermal Properties
Mechanical Properties
Curing Conditions
Additional Information
MG52F-99B NXP has passed the following testing:
- Operating Life Static Test, 125° C, 5.5V 1000 Hours: Passed
- Biased Humidity, 85° C / 85% R H, 1000 Hours: Passed
- Autoclave, 121° C, 15 psi, 240 Hours: Passed
- Temperature Cycle Test, -65° C to 150° C, 1000 Cycles: Passed
- Storage Life Test, 150° C, 1000 Hours: Passed
- Thermal Shock Test, -55° C to 125° C, 500 Cycles: Passed
- Solder Heat, 260° C, 10 Sec, 1 Cycle: Passed
- Lead Pull to Destruction: Passed
- X-Ray: Passed
