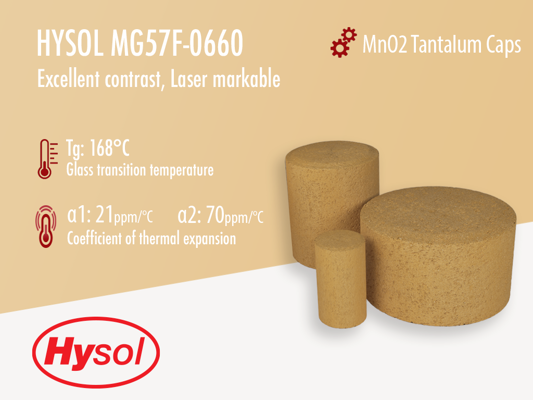

Hysol MG57F-0660 | Gold Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Gold epoxy mold compound
- Laser Markable
- Designed for MnO2 Tantalum Capacitors
Product Description
Hysol MG57F-0660 is a gold-colored, environmentally friendly “green” (no bromine/antimony or phosphorous) molding compound. It has been designed especially for use in high volume molding of Manganese Oxide MnO2 tantalum capacitors. It offers excellent moldability with faster cycle times than most traditional epoxy based encapsulants and is especially recommended for automold applications.
Hysol MG57F-0660 also offers excellent contrast with currently available laser marking equipment making it ideal for laser marking product information on the component.
Curing Time
- 20 to 35 seconds @170°C
- 30 to 60 seconds @150°C
Post Cure
- 2 hours @150°C

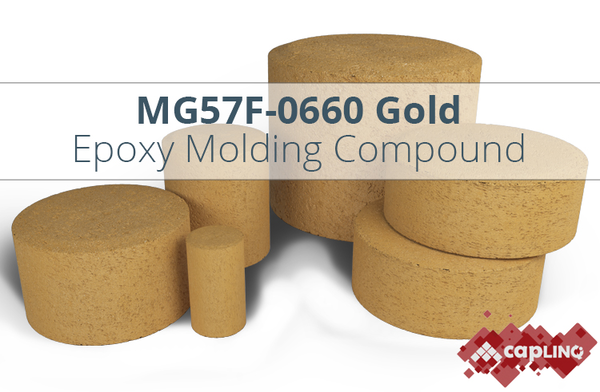

MG57F-0660 Gold
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- Hysol MG57F-0660
- CAPLINQEpoxyMoldCompoundHandlingGuide1
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Chemical Properties
Curing Conditions
Additional Information
