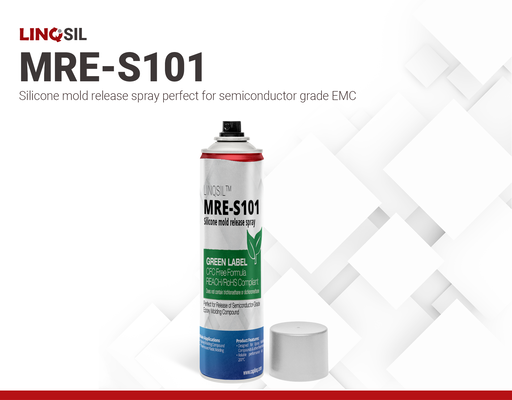

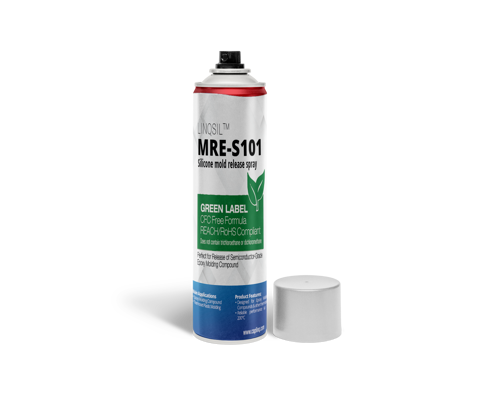

Chemlinq MRE-S101 | Silicone Mold Release Spray
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Silicone based Mold Release spray
- Green label
- Compatible with Epoxy Mold Compound
Product Description
CHEMLINQ MRE-S101 is a highly effective mold release agent designed for use with a wide range of materials, including polyurethane elastomers, epoxy resins, and thermoplastics. It ensures proper separation even in complex molds without requiring heat treatment, and it performs reliably at temperatures up to 200 °C.
CHEMLINQ MRE-S101 minimizes mold cleaning due to its low build-up and provides an excellent surface finish, making it ideal for applications requiring precision and high-quality molding.
MRE-S101
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks
Shipping in 8 weeks
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- CHEMLINQ MRE-S101 TDS
- Chemlinq MRE-S101 SDS .docx
Technical Specifications
General Properties
Thermal Properties
Additional Information
|
Material |
Tensile Strength |
Maximum Displacement |
|
ABS |
◾◾◾ |
◾◾◾ |
|
Acetal |
◾◾◾ |
◾◾◾ |
|
Acrylic |
◾◾◽ |
◽◽◽ |
|
Epoxy |
◾◾◾ |
◾◾◾ |
|
PEI |
◾◾◾ |
◾◾◽ |
|
PET |
◾◾◾ |
◾◾◾ |
|
Polycarbonate |
◾◾◾ |
◽◽◽ |
|
Polyethylene |
◾◾◾ |
◾◾◽ |
|
Polypropylene |
◾◾◾ |
◽◽◽ |
|
PPO |
◾◾◾ |
◽◽◽ |
|
PPS |
◾◾◾ |
◾◾◾ |
|
SBR Rubber |
◾◾◾ |
◽◽◽ |
Instructions for Use
-
Ensure the mold surface is clean and free from dust, grease, or previous residues before application.
-
Release Agent Application: Shake the aerosol can thoroughly before use. Hold the can approximately 20–30 cm (8–12 inches) from the mold surface. Spray a thin, even coat over the entire mold surface. Avoid over-application to prevent an oily surface finish.
-
Molding Process: Allow the mold to dry, forming a barely visible, non-palpable film. Proceed with the molding process. CHEMLINQ MRE-S101 works at temperatures up to 200 °C.
-
Reapply as needed. For each molding cycle, apply a thin layer to maintain clean, dry, and easy part removal without sticking or tearing.
-
Post-Molding Care: After molding, if excessive build-up occurs over time, clean the mold as necessary to maintain optimal performance.
Storage and Handling
CHEMLINQ MRE-S101 silicone spray is supplied in aerosol cans and should be kept in a cool (10–25 °C), dry place (40–75% humidity) away from direct sunlight or temperature extremes. Once removed from packaging it should be protected against flammable environments and other impurities.
