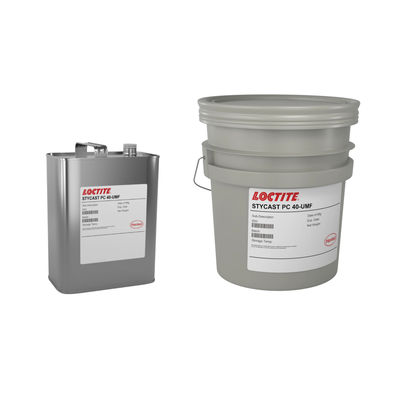

LOCTITE STYCAST PC40-UMF
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- VOC free
- Single component
- UV and Moisture cure
Product Description
LOCTITE® STYCAST PC 40-UMF conformal coating is specifically formulated to rapidly gel and immobilize when exposed to UV light and then fully cure when exposed to atmospheric moisture, ensuring optimum performance even in shadowed areas.
LOCTITE STYCAST PC 40-UMF offers very low outgassing and CVCM content that conforms to IPC-CC-830 requirements. It is a great product for multiple substrates, including a variety of metal surfaces, ceramic, and glass filled epoxy.
Advantages of Loctite Stycast PC 40-UMF
- Single Component
- VOC free
- UV and moisture curable
Cure Schedule
- 10 seconds @ 300 to 600 mW/cm² UV
- Wavelength, nm 365
PC40-UMF
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 15 days
Shipping in 12 weeks
Shipping in 30 daysPackaging
TDS, SDS & Technical Documents
- STYCAST PC 40-UMF-EN
- 1283109_MSDS_UT_US_EN
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Physical Properties
