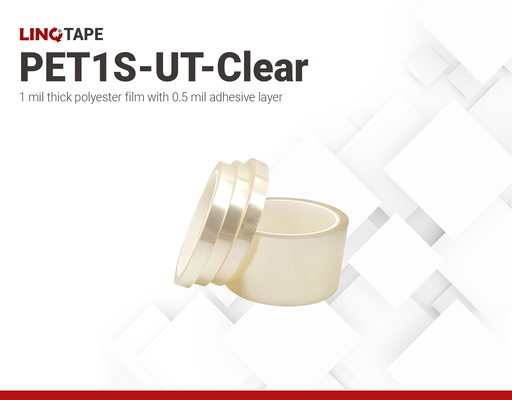

PET1S-UT-Clear | 1-mil Clear Polyester (PET) Tape with ultra thin Silicone Adhesive

Harmonization Code : 3920.10.28.99 | Polymers of Ethylene Plates, Sheets, Film, Foil, Tape, or Strips (Non-cellular), having a thickness not exceeding 0.125mm, having a specific gravity of 0.94 or more

PET1S-UT-Clear | 1-mil Clear Polyester (PET) Tape with ultra thin Silicone Adhesive

Main features

  • 1 mil thick polyester film
  • Ultra thin silicone adhesive
  • 4200V breakdown voltage

Product Description

LINQTAPE PET1S-UT-Clear is a 1-mil polyester film backing with an ultra thin pressure-sensitive silicone adhesive system. PET1S polyester tape is a no-residue tape designed for splicing and masking applications where high initial adhesion is required, but no residue once the tape is removed.

LINQTAPE PET1S-UT-Clear is a high-performance, flexible, polyester tape used in a wide range of applications. For very high-temperature applications, polyimide tape should be used, but for applications with temperatures up to 200C, PET1S is the most effective and least expensive solution. Clear film especially for applications that require colorless film. Used for high-temperature masking in powder coating applications and as PCB protective masking during various phases of printed circuit board (PCB) production. Also excellent for splicing operations requiring silicone adhesive.



Key Features:

  • No residue
  • High initial adhesion
  • For splicing and masking
  • For high temp masking in powder coating
  • For PCB protective masking
  • High performance
  • Flexible
Product Family

PET1S-UT-Clear

1. Select Width
2. Select Length
Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Product availability
US Shipping in 6 weeks
CA Shipping in 6 weeks
EU Shipping in 6 weeks
Packaging
Please select Width and Length before adding your product to your cart.

Technical Specifications

Electrical Properties
Breakdown Voltage Breakdown Voltage
4,200 V
Other Properties
RoHS Compliant RoHS Compliant
Yes
VOC-Free (100% solids content) VOC-Free (100% solids content)
Yes
Mechanical Properties
Adhesion Strength Adhesion Strength
30 Oz/in
Elongation Elongation
100 %
Tensile Strength (Thin Film) Tensile Strength (Thin Film)
43 N/cm
General Properties
Adhesive Layer Adhesive Layer
Acrylic
Adhesive Thickness Adhesive Thickness
12.7 µm
Film Thickness Film Thickness
25.4 µm
Release Liner Release Liner
None
Total Thickness Total Thickness
38.1 μm
