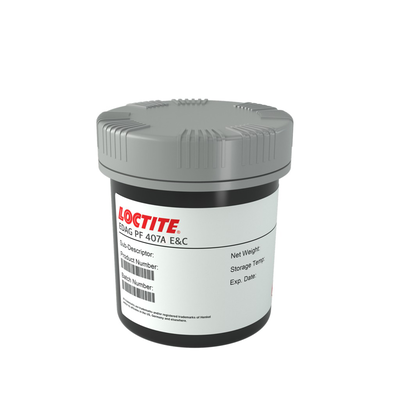

LOCTITE EDAG PF 407A E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Print Contact areas
- Good screen residence time
- Carbon filled
Product Description
LOCTITE EDAG PF 407A E&C is a carbon filled ink with inert pigment that can be used to print contact areas on flexible circuits.
LOCTITE EDAG PF 407A is a screen printable, conductive, carbon filled thermoplastic with good screen residence time that is flexible for low temperature drying cycles.
LOCTITE EDAG PF 407A is typically used for printed resistors, membrane touch switches. keyboards, heating elements, flexible circuits and ESD protection. It can continuously operate at a temperature of 105°C and has been successfully used on Polyester, Polyimide, Polycarbonate, paper and cardboard substrates.
Drying Cycle
- 30 minutes @ 90°C or
- 15 minutes @ 120°C
PF407A
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 30 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE EDAG PF 407A
- LOCTITE EDAG PF 407A SDS
Technical Specifications
General Properties
Physical Properties
Additional Information
Optimal Storage : 5 to 30 °C
TYPICAL SCREEN PRINTING PROCESS
Recommended Thickness
-Applied dry coating thickness , μm 6 to 10
Emulsion Thickness
-Emulsion Thickness , μm 20 to 40
Recommended Squeegee
-Polyurethane , durometer 70 to 75
Recommended Screen Type
-Monofilament polyester screen, threads/cm 61 to 90
-Stainless steel screen , threads/cm 77 to 110
Printing Equipment Type
-Manual
-Semi-automatic
-High speed reel-to-reel
