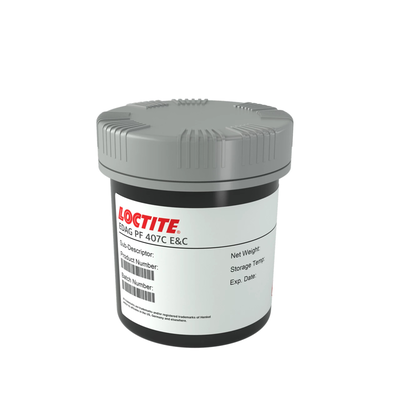

LOCTITE EDAG PF 407C E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Screen printable
- Extended screen residence time
- Carbon filled
Product Description
LOCTITE EDAG PF407C E&C polymer thick film is designed for production of low voltage circuitry on polyester film and solvent sensitive substrates such as polycarbonate. It can be used in continuous operating temperatures as high as 105°C and it typically used for printed resistors, membrane touch switches, heating elements, flexible circuits and protection against electrostatic discharge (ESD).
LOCTITE EDAG PF407C E&C is a conductive, screen printable thermoplastic with extended screen residence time over EDAG PF 407A E&C. It has good adhesion and flexible, low temperature drying cycles. This ink works on substrates such as Polyester, Polyimide, Polycarbonate, paper and cardboard.
Drying Cycle
- 30 minutes @ 90°C or
- 15 minutes @ 120°C
LOCTITE EDAG PF 407C E&C can be dried immediately after printing.
PF407C
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 30 daysPackaging
TDS, SDS & Technical Documents
- EDAG PF 407C EC-EN
- 1239174_MSDS_UT_GB_EN
Technical Specifications
General Properties
Physical Properties
Additional Information
Optimal Storage : 5 to 30 °C
TYPICAL SCREEN PRINTING PROCESS
Recommended Thickness
-Applied dry coating thickness , μm 6 to 10
Emulsion Thickness
-Emulsion Thickness , μm 20 to 40
Recommended Squeegee
-Polyurethane , durometer 70 to 75
Recommended Screen Type
-Monofilament polyester screen, threads/cm 61 to 90
-Stainless steel screen , threads/cm 77 to 110
Printing Equipment Type
-Manual
-Semi-automatic
-High speed reel-to-reel
