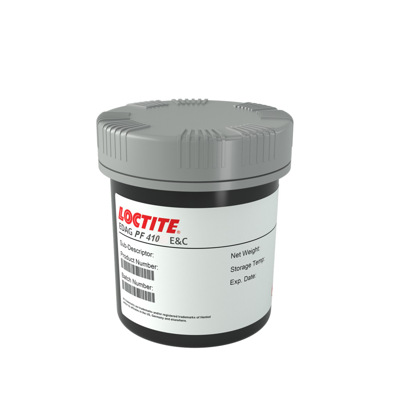

LOCTITE EDAG PF 410 E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Screen printable
- Excellent print definition
- Silver filled
Product Description
LOCTITE EDAG PF 410 E&C is designed for production of flexible circuitry. This material can be used on a variety of substrates and is applicable with manual, semi automatic or high speed reel to reel screen printing equipment.
LOCTITE EDAG PF 410 E&C is passed over a triple roll mill to remove small particles. It offers extended screen residence time and excellent print definition with superior adhesion to polyester film.
Drying Cycle
- 30 minutes @ 80°C or
- 15 minutes @ 120°C
LOCTITE EDAG PF 410 E&C can be dried immediately after printing at temperatures between 80 to 140°C
PF410
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 93 days
Shipping in 12 weeks
Shipping in 25 daysPackaging
TDS, SDS & Technical Documents
- EDAG PF 410 EC-EN
- 1239112_MSDS_UT_GB_EN
Technical Specifications
General Properties
Physical Properties
Additional Information
Optimal Storage : 5 to 30 °C
TYPICAL SCREEN PRINTING PROCESS
Recommended Thickness
-Applied dry coating thickness , μm 8 to 12
Emulsion Thickness
-Emulsion Thickness , μm 20 to 40
Recommended Squeegee
-Polyurethane , durometer 70 to 75
Recommended Screen Type
-Monofilament polyester screen, threads/cm 68 to 110
-Stainless steel screen , threads/cm 90 to 154
Printing Equipment Type
-Manual
-Semi-automatic
-High speed reel-to-reel
