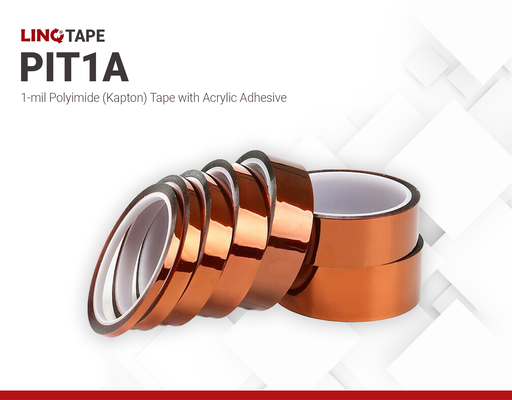

PIT1A | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features

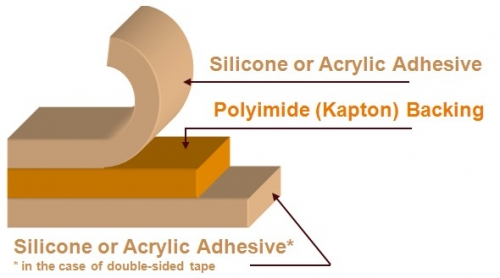

- 1 mil polyimide film
- Acrylic adhesive
- 6,500V breakdown voltage
Product Description
LINQTAPE™ PIT1A-Series is a high-temperature resistant polyimide tape designed for both permanent and temporary bonding in many high temperature applications. These applications can be found in semiconductor, smartcard, electronic, automotive and general manufacturing industries
LINQTAPE™ PIT1A-Series Tape provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 155°C (311°F).
LINQTAPE™ PIT1A-Series Tape comes in 33 meter (36 yard) rolls of varying widths. LINQTAPE PIT-A polyimide films with acrylic adhesive are available in a range of thicknesses, starting from 1-mil (25.4µm) thickness and up. Custom thicknesses are available upon request.
PIT1A-Series
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQ PIT1A-ESD-BLACK RoHS 2021
- LINQTAPE PIT1A TDS
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Other Properties
Mechanical Properties
