PIT1S | 1-mil Polyimide (Kapton) Tape with Silicone Adhesive
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features

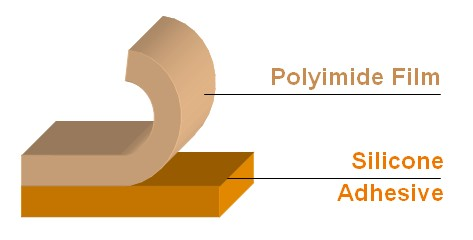

- 1 mil polyimide film
- Silicone adhesive
- >6000V breakdown voltage
Product Description
LINQTAPE™ PIT1S-Series is a high-temperature resistant polyimide tape designed for both permanent and temporary bonding in many high temperature applications. These applications can be found in semiconductor, smartcard, electronic, automotive and general manufacturing industries. It is a good alternative product to Nitto Permacel P-221, 3M 5413 and Intertape 4428.
Key Features:
- Superior electrical insulation - Insulation Temperature Rating Class H (180°C)
- Superior heat resistance - Operation temperature up to 260°C
- Good puncture, tear and abrasion resistance
- High-temperature resistant and solvent-against silicone adhesive
Typical Applications: PCB solder masking, electrical insulation used in coils/motors/transformers/bobins/capacitors, etc.

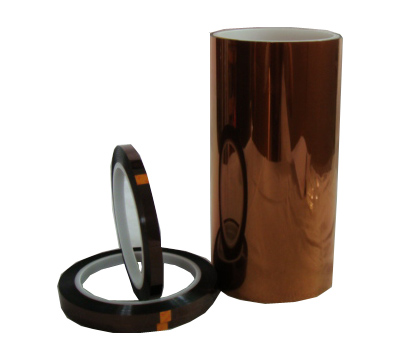

LINQTAPE™ PIT1S-Series Tape comes in 33 meter (36 yard) rolls of varying widths. LINQTAPE PIT-S polyimide films with silicone adhesive are available in a range of thicknesses, starting from 0.5 mil (12.7µm) thickness and up. Custom thicknesses are available upon request.
PIT1S-Series
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQ PIT-S RoHS
- LINQTAPEPITSEUMSDS
- LINQTAPE PIT1S
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Other Properties
Mechanical Properties
Additional Information
Typical Applications
Comparing with Kapton tape with acrylic adhesive (PIT1A series), silicone adhesives tape can withstand higher temperature range as compared to acrylic adhesives, which provide a wider appilication range. Acrylics have the property of being more brittle and as such they can crack at extremely low temperatures too. Generally speaking, the acrylic adhesive will have higher adhesion at mid-range temperatures (0°C to 100°C), but silicone adhesives have higher adhesion at lower temperatures (under 0°C) and higher temperatures (above 100°C). PIT1S-Series are suitable for continous cold and high temperature environments, typical applications are:
- Masking against chemicals, heat and other hash conditions
- PCB masking for wave solder and solder reflow process
- Protective layer, ground, barrier and cross over insulation for electrical components like bobbin, toroidal coils, etc.
- End-turn bunding and connection insulation for small motors, etc.
Replacement Suggestion
| Popular Brand Names | Caplinq LINQTAPE Part # | Product Description |
|
Dupont Kapton Tapes |
1 mil HN Polyimide Film | No Adhesive | |
|
Nitto Permacel P-224 3M 1206 |
1-mil Single-sided Polyimide (Kapton) Tape With Acrylic-based Adhesive | |
|
Nitto Permacel P-221 3M 5413 Saint-Gobain Furon K250 Intertape 4428 |
LINQTAPE PIT1S-Series | 1-mil Single-sided Polyimide (Kapton) Tape With Silicone-based Adhesive |
| Nitto Permacel P-223 | LINQTAPE PIT1SD-Series | 1-mil Double-sided Polyimide (Kapton) Tape With Silicone-based Adhesive |
|
Nitto Permacel P-222 Saint-Gobain Furon K350 Intertape 4429 |
LINQTAPE PIT2S-Series | 2-mil Single-sided Polyimide (Kapton) Tape With Silicone-based Adhesive |
| Saint-Gobain Furon K104 | LINQTAPE PIT5S-Series | 5-mil Single-sided Polyimide (Kapton) Tape With Silicone-based Adhesive |
