PIT1SD | 1-mil Polyimide (Kapton) Tape with Silicone Adhesive | Double-Sided - Single liner
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 1 mil polyimide film
- Silicone adhesive
- >65000V breakdown voltage
Product Description
LINQTAPE™ PIT1SD Series is a high performance, high-temperature resistant, pressure sensitive polyimide tape designed for both permanent and temporary bonding in many high temperature applications. These applications include but are not limited to semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE™ PIT1SD Series provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 260°C (500°F).

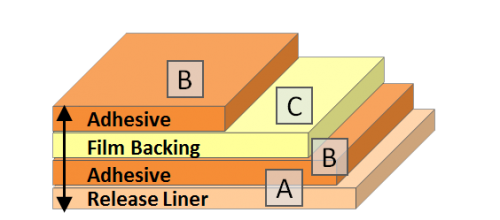

LINQTAPE™ PIT1A-ESD Series comes in 33 meter (36 yard) length rolls of varying widths. The base polyimide film (backing) thickness is 1 mil (25.4 ± 2µm) thick and the total thickness including the adhesive layer is approximately 4 mil (100 ± 4µm).
PIT1SD-Series
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeksPackaging
TDS, SDS & Technical Documents
- CAPLINQ PIT-SD SVHC (197)
- CAPLINQ PIT-SD RoHS
Technical Specifications
Thermal Properties
Other Properties
Mechanical Properties
General Properties
Electrical Properties
Additional Information
