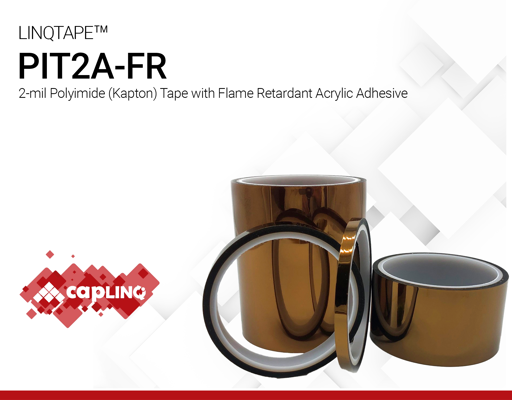

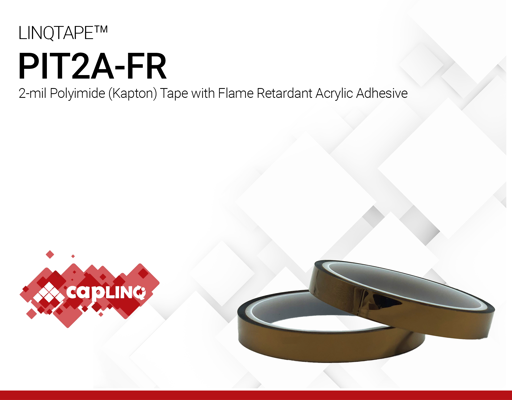

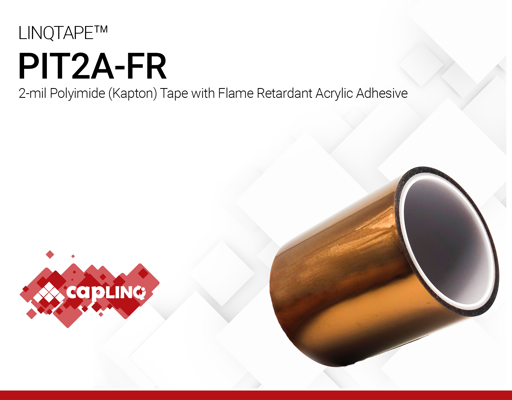

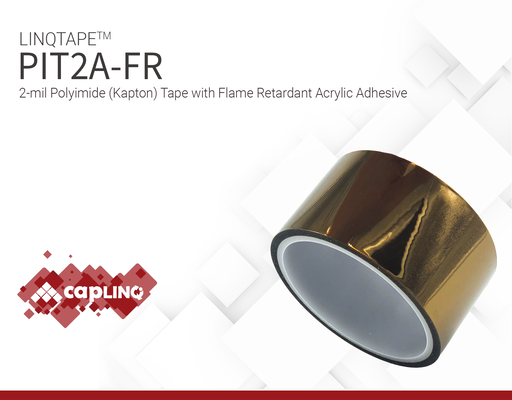

PIT2A-FR | 2-mil Polyimide (Kapton) Tape with Flame Retardant Acrylic Adhesive
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 2-mil polyimide film
- Flame retardant acrylic adhesive
- UL 94-V0 rated tape
Product Description
LINQTAPE PIT2A-FR Series is a Kapton Tape Alternative whose high-temperature resistant polyimide tape is designed for both permanent and temporary bonding in many high temperature applications. These applications are can be found in semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE PIT2A-FR Series Tape provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 155C.
PIT2A-FR Series
1. Select Width
2. Select Length
Price starting from €8.26
Product availability
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks Shipping in 2 weeks Shipping in 2 weeksPackaging
Please select Width and Length before adding your product to your cart.
TDS, SDS & Technical Documents
- CAPLINQ PIT2A-FR Halogen Free Compliance report
- LINQTAPE PIT2A-FR TDS
Technical Specifications
Thermal Properties
Temperature Resistance Temperature Resistance
155 ˚C Electrical Properties
Breakdown Voltage Breakdown Voltage
11,000 V General Properties
Adhesive Layer Adhesive Layer
Flame Retardant Acrylic Adhesive Thickness Adhesive Thickness
38.1 µm Chemistry Type Chemistry Type
Polyimide Color Color
Amber Film Thickness Film Thickness
50.8 µm Release Liner Release Liner
None Single or Double-Sided Adhesive Single or Double-Sided Adhesive
Single-Sided Special Layer Special Layer
None Total Thickness Total Thickness
88.9 μm Other Properties
RoHS Compliant RoHS Compliant
Yes VOC-Free (100% solids content) VOC-Free (100% solids content)
Yes Mechanical Properties
Adhesion Strength Adhesion Strength
25 Oz/in Elongation Elongation
60 % Tensile Strength (Thin Film) Tensile Strength (Thin Film)
89.0 N/cm
