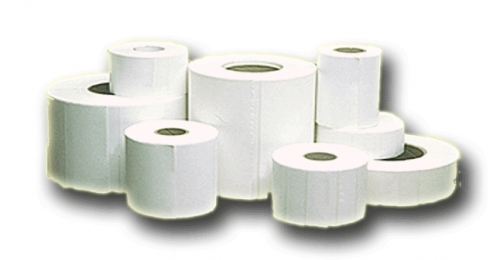

PIT2A-WL | 2-mil Polyimide (Kapton) Tape with Acrylic Adhesive | White-Labeled
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 2 mil polyimide film
- Non-silicone, acrylic adhesive
- White-labeled
Product Description
LINQTAPE PIT2A-WL-Series is a Kapton Tape Alternative used for thermal printing and provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that require themal printing on parts that can see high temperatures such as steel or other alloys.
PIT2A-WL-Series
1. Select Width
2. Select Length
Price starting from €21.09
Product availability
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks Shipping in 2 weeks Shipping in 2 weeksPackaging
Please select Width and Length before adding your product to your cart.
TDS, SDS & Technical Documents
- LINQTAPE PIT2A-WL TDS
Technical Specifications
General Properties
Adhesive Layer Adhesive Layer
Acrylic Adhesive Thickness Adhesive Thickness
38.1 µm Chemistry Type Chemistry Type
Polyimide Color Color
White Film Thickness Film Thickness
50.8 µm Release Liner Release Liner
Kraft Single or Double-Sided Adhesive Single or Double-Sided Adhesive
Single-Sided Special Layer Special Layer
Thermal Ink Print Layer Total Thickness Total Thickness
88.9 μm Thermal Properties
Temperature Resistance Temperature Resistance
300 ˚C Electrical Properties
Breakdown Voltage Breakdown Voltage
11,000 V Other Properties
RoHS Compliant RoHS Compliant
Yes Mechanical Properties
Adhesion Strength Adhesion Strength
25 Oz/in Elongation Elongation
60 % Tensile Strength (Thin Film) Tensile Strength (Thin Film)
88 N/cm
