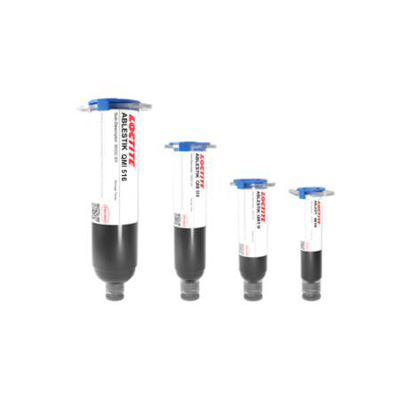

LOCTITE ABLESTIK QMI 516
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Electrically conductive
- Hydrophobic
- Snap cure
Product Description
LOCTITE ABLESTIK QMI516 is a silver filled conductive adhesive for attachment of integrated circuits and components to metal leadframes advanced substrates, including: SBGA’s, PBGA’s, array packages, tape packs and CSP’s. This material is hydrophobic and stable at high temperatures. These features produce void-free bonds lines with excellent interfacial adhesion strength to a wide variety of organic and metal surfaces, including solder mask, BT, FR, polyimide, Au, Kapton™ and Mylar™.
A package or device manufactured with LOCTITE ABLESTIK QMI516 will have good resistance to delamination and “popcorning” after exposure to reflow temperatures. The adhesive also has excellent electrical and thermal conductivity properties. LOCTITE ABLESTIK QMI516 can be cured in a conventional oven, on a snap cure oven, or utilize SkipCure™ processing on a die bonder or wire bonder. The material is formulated to produce cure onset below 100°C. This can reduce or eliminate the need to pre-dry organic substrates prior to the die attach process.
LOCTITE ABLESTIK QMI516 is a long standing product with no plans to be discontinued. Nevertheless, the risk of running into raw material disruptions and minimum batch size challenges with QMI 516 over time is higher than with other high-volume runners. That’s why, for new applications, we recommend qualifying LOCTITE ABLESTIK 2100A with similar properties and applications.
Snap Cure
- 10 seconds @ 150°C
Oven Cure
- 15 minutes @ 150°C
QMI516
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- ABLESTIK QMI516-EN
- 447235_MSDS_UT_US_EN
- 379972_MSDS_UT_US_EN
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Chemical Properties
Physical Properties
Additional Information
How do Bismaleimide based materials fair against bleeding?
Bleeding is a known “side effect” of QMI products based on BisMaleImide (BMI) resin. The relatively low BMI resin viscosity allows higher filler loading and this makes this resin popular for semiconductor die attach use (next to its higher temperature and moisture resistance vs epoxies for instance). By using very fast “snap cure” profiles like most semiconductor companies do, bleeding can be controlled. Acrylate resin based products like CA 3556HF show less bleeding in general.
Bleeding can be also controlled by surface treatments, curing process and adding anti-bleed agents to the adhesives.
Sometimes if you take the relatively short pot life at 25C and high reactivity of QMI resins into account, next to its higher bleeding and higher resin cost base, we could suggest to focus on CA 3556HF and lower silver content ICP 8282 for specific applications. It is all application dependent and we are happy to help you choose.
