RTM-X22 | Pluggable Phase Change Pad
Harmonization Code : 8547.90.00.00 | Insulating fittings for electrical machines, appliances or equipment, being fittings wholly of insulating material apart from any minor components of metal (for example, threaded sockets) incorporated during moulding solely for purposes of assembly, other than insulators of heading 8546; electrical conduit tubing and joints therefor, of base metal
Main features
- 0.7 Thermal Impedance
- >50 Pluggable performance
- 0.15 - 0.22mm Thickness
Product Description
Honeywell RTM-X22, a pluggable thermally conductive Phase Change Material (PCM), offers multiple pluggable performance. It is designed to minimize thermal resistance at interfaces, maintain excellent performance through reliability testing, and provide scalable application at a competitive cost.
Based on a novel polymer PCM system, Polyimide (PI) film was used as substrate, allowing direct contact of PCM to provide multiple pluggable performance. The edge is coated with pressure sensitive adhesive (PSA) to provide adhesion with other devices. This material exhibits excellent wetting at interfaces during typical operating temperature ranges, resulting in very low surface contact resistance.

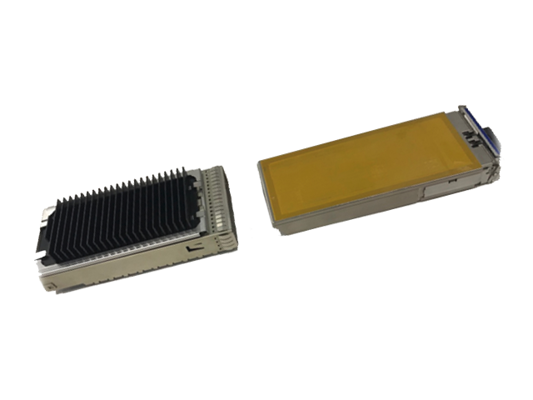

Honeywell RTM-X22 Pluggable TIM for pluggable optical modules reduces operational temperature and can withstand repeated mechanical insertions. We can share a plethora of Technical Information with a signed NDA. Contact us for more information.
RTM-X22
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksPackaging
TDS, SDS & Technical Documents
- Honeywell_1907_2006 _SVHC Compliance_2024
- RTM-X22 Pluggable TIM_TDS
