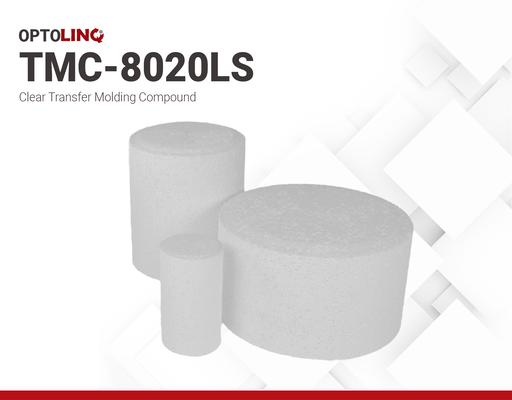

TMC-8020LS | Clear Optical Molding Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- LED Encapsulation
- Low stress
- Better reflow and Thermal shock
Product Description
OPTOLINQ TMC-8020-LS is a high-performance optical solid epoxy specifically developed for LED encapsulation. This monocomponent epoxy achieves superior adhesion performance and great transmittance. It has lower Tg than the "normal" 8020 version.
OPTOLINQ TMC-8020-LS is able to offer low blue-ray decay for outdoor LED applications and overall great light performance. This low stress white epoxy is very close to competitive solutions such as XX814, XX1000 and XX97. It is a reliable product that has improved reflow abilities and thermal shock test performance.
TMC8020LS
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks
Shipping in 8 weeks
Shipping in 8 weeksPackaging
Technical Specifications
General Properties
Thermal Properties
Chemical Properties
Curing Conditions
Physical Properties
Additional Information
| PROPERTY | UNIT | TMC-8020L | TMC-8020LS |
| Viscosity | cP | 300 | 200 |
| Spiral Flow @150°C | cm | 150-250 | 150-250 |
| Hot Plate Gel Time @150°C | sec | 25-50 | 20-50 |
| Glass Transition Temperature | °C | 115 | 95 |
|
CTE by TMA, α1 CTE by TMA, α2 |
ppm ppm |
70 170 |
70 220 |
|
Moisture Absorption PCT 24 hrs @25°C water 24 hrs @121°C, 2atm, 100%RH |
wt% wt% |
0.16 3.2 |
0.17 3.8 |
|
Flexural Strength @25°C Flexural Modulus @25°C |
MPa Mpa |
130 2900 |
110 3100 |
|
yellowing Δb - 4 hrs @200°C yellowing Δb - 30 min @280°C yellowing Δb - 4 hrs UV |
- |
8 42 16.5 |
25 45 16.5 |
| Transmittance 1mm @450nm | % | >90 | >90 |
| Refractive Index @633nm | - | 1.56 | 1.56 |
| Comment | Low stress version for better reflow performance | Low stress for balanced reflow and thermal shock test performance |
