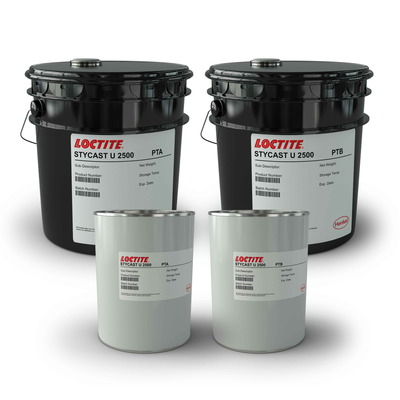

LOCTITE STYCAST U2500
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Two components
- Potting component
- Room temperature cure
Product Description
LOCTITE STYCAST U 2500 is a polyurethane encapsulant designed for transformer, PCB's and other insulation applications. It allows for complete impregnation when used either on small slightly wound coils or large castings.
LOCTITE STYCAST U 2500 exhibits excellent wettability, flexibility and can cure in room temperature. Its operating temperature is between -40°C to 125°C.
Cure Schedule
- 24 hours @ 25°C or
- 4 hours @ 60°C
Complete cure at room temperature will be obtained after 2 to 3days.
U2500
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 15 daysPackaging
TDS, SDS & Technical Documents
- STYCAST U 2500-EN
- 1189326_MSDS_UT_GB_EN
- 1189329_MSDS_UT_GB_EN
Technical Specifications
Thermal Properties
Mechanical Properties
Chemical Properties
Physical Properties
Additional Information
Cure Schedule
With LOCTITE CAT 9
- 16 to 24 hours @ 25°C
- 4 to 6 hours @ 45°C
- 1 to 2 hours @ 65°C
With LOCTITE CAT 11
- 8 to 16 hours @ 80°C
- 2 to 4 hours @ 100°C
- 30 to 60 minutes @ 120°C
With LOCTITE CAT 23LV
- 16 to 24 hours @ 25°C
- 4 to 6 hours @ 45°C
- 2 to 4 hours @ 65°C
With LOCTITE CAT 24LV
- 8 to 16 hours @ 25°C
- 4 to 6 hours @ 45°C
- 2 hours @ 65°C
With LOCTITE CAT 27-1
- 4 hours @ 120°C
