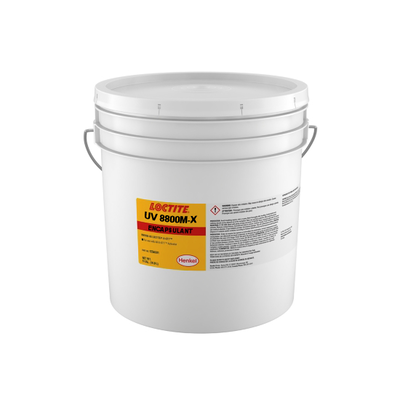

LOCTITE ECCOBOND UV8800M-X
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Fast UV Cure
- Good workability
- Good adhesion
Product Description
LOCTITE ECCOBOND UV8800M-X encapsulant is formulated for use in smart card applications. It cures to form a hard translucent coating when exposed to UV light of sufficient intensity. The curing of the product is not inhibited by oxygen, resulting in excellent surface cure.
LOCTITE ECCOBOND UV8800M-X glob top encapsulant can be used on FR4, FCI and LG tape substrates.
UV Cure
- Light Intensity, mW/cm2 100
- Exposure Time, seconds 30
UV8800M-X
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksPackaging
Please select Package Type before adding your product to your cart.
TDS, SDS & Technical Documents
- LOCTITE ECCOBOND UV8800M-X
- LOCTITE ECCOBOND UV 8800M-X SDS
Technical Specifications
Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
47 °C Physical Properties
Thixotropic index Thixotropic index
1.1 Viscosity Viscosity
3,400 mPa.s
