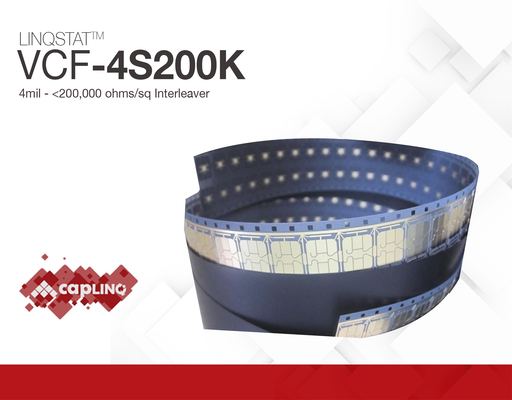

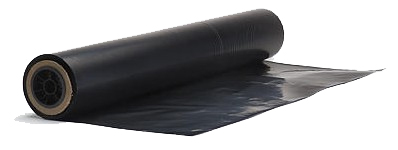

VCF-4S200K | LINQSTAT 4 mil - 200,000 Ω/sq Antistatic film

LINQSTAT VCF-4S200K is a black, carbon-filled, electrically conductive polyethylene plastic film designed to provide both physical and static protection. Having a surface resistance of  200,000 ohm-sq, (2x105 Ω-sq) it offers medium-level static protection which means it effectively avoids accumulation of electric charge on itself and the products which it protects. Its easy-grounding nature makes it ideal for packaging where electrostatic contamination is a problem.

VCF-4S200K is useful in applications where the key is to balance cost versus performance. As a medium-level conductive plastic, the carbon-loading is such that it is low-enough to be cost-effective, while being high enough to meet the electrical requirements of military specification MIL-PRF-81705D Type II and MIL-P-82646A. It is typically used as an antistatic smartcard and micromodule interleaver.

VCF-4S200K film and its conductivity are unaffected by humidity and age. It gives good thermal stability and has outstanding chemical resistance. It has a standard thickness of 4mil(0.1mm)  and is available in 91cm, 30cm and also 35mm rolls, ideal for smartcard and micromodule interleaving applications.

Production batches from 2023 will have a tolerance of ±100,000ohms
