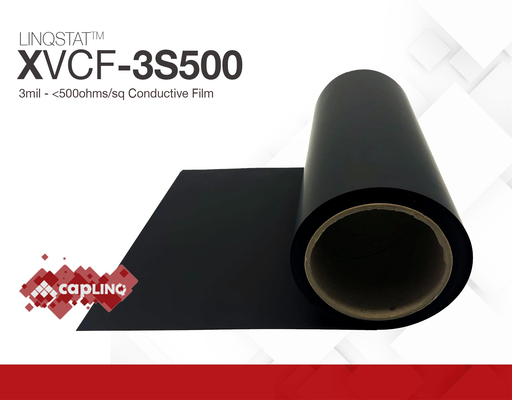

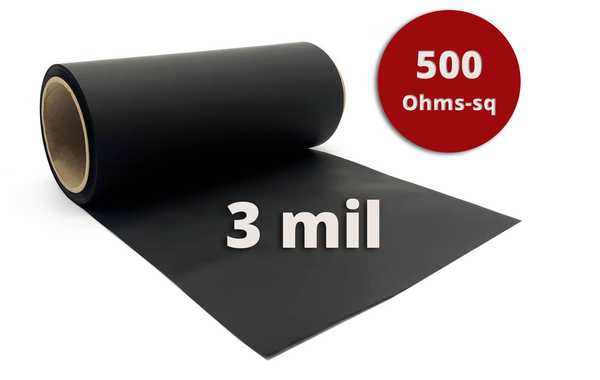

XVCF-3S500 | LINQSTAT 3 mil - 500 Ω/sq Conductive Film

LINQSTAT™ XVCF-3S500 is a highly conductive conductive polyethylene film similar to our standard VCF-Series film but with a higher electrically conductive carbon loading and a denser polymer mix. Having a surface resistance of ±500 ohms/sq, this extra loading makes the XVCF-Series more conductive than our standard film and allows it to be used in applications that require a lower resistivity. In addition, the film is volume conductive, claiming a mere 3.5 ohms-cm volume resistivity.

LINQSTAT™ XVCF-3S500 conductive films are thin (0.07mm or 3 mil), lightweight and relatively inert. Furthermore, they are well suited for applications requiring electrochemical reactions, high conductivity or charge storage including but not limited to electrodes (ECG, TENS, Defibrillation and Iontophoresis), batteries (flat-cell zinc/manganese dioxide (MnO2), Lithium Ion and Lithium polymer), wearable electronics and digital whiteboards.

LINQSTAT™ XVCF-3S500 film and its conductivity are unaffected by humidity and age. The film is heat sealable, flexible and offers exceptional abrasion resistance. The film gives good thermal stability and has outstanding chemical resistance. It has a standard thickness of 76µm (3 mil) and is available in various lengths and widths upon request. The standard core size is 3" but some widths are also available with a 6" core.
