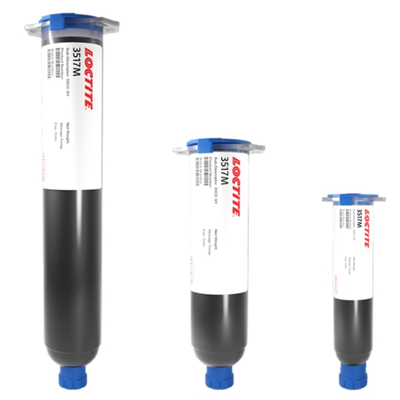

LOCTITE 3517M
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Reworkable
- No filler
- Low halogen content
Product Description
LOCTITE 3517M underfill is a heat curable epoxy, designed for use as a solder joint protection against mechanical stress in hand held electronic device applications.
LOCTITE 3517M underfill is typically used for CSP (Chip Scale package), Flip chip BGA and Ball grid Array package applications.
LOCTITE 3517M underfill contains no filler and is therefore suitable to be used in very low spaces. It contains hardener particle with an average size of 6µm and a maximum particle size around 30µm.
Cure Schedule
- 5 minutes @ 120°C or
- 10 minutes @ 100°C
For best results, substrate should be preheated (typically to 40°C for 20 seconds) to allow for fast capillary flow and facilitate leveling.
3517M
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 50 days
Shipping in 12 weeks
Shipping in 45 daysPackaging
TDS, SDS & Technical Documents
- LOCTITE 3517M
- LOCTITE 3517M SDS
- LOCTITE 3517M known as Loctite 3517M 30CC CSP UF E
Technical Specifications
General Properties
Thermal Properties
Physical Properties
