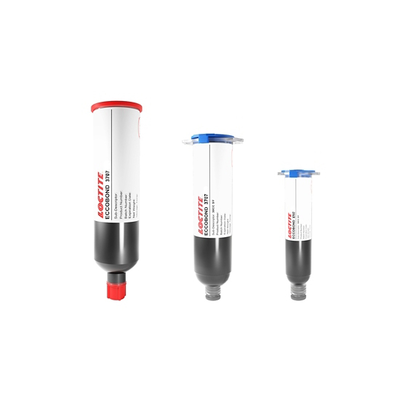

LOCTITE ECCOBOND 3707
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- UV & Heat cure
- One component
- BGA cornerbond
Product Description
LOCTITE ECCOBOND 3707 UV curable edgebond is designed for bonding various types of electronic components on a PCB. It mainly plays a structural role in the packaging process.
LOCTITE ECCOBOND 3707 is a white, single component epoxy that is typically used for UV Curable CSP (Chip Scale Packages) and as a BGA (Ball Grid Array) Cornerbond.
UV Cure:
- >3,000mJ or
- >30 seconds @ 100 mW/cm²
Minimum intensity of 100 mW/cm² is recommended for the UV lamp
Oven Cure:
- 2 minutes @ 130°C
3707
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 43 days
Shipping in 12 weeks
Shipping in 12 weeksPackaging
TDS, SDS & Technical Documents
- LOCTITE ECCOBOND 3707
- LOCTITE ECCOBOND 3707
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Additional Information
UV/Light Cure Strengths
- One component
- No solvents
- Very fast room temperature cure
- Cure on demand-facilitates parts alignment
- Less equipment space and energy
- Fast through put-low WIP
UV/Light Cure Limitations
- Sensitive to light-requires special space lighting
- Oxygen inhibits cure
- Line of sight cure- shadowed areas require secondary cure
- High CTE- fillers used to lower CTE block UV/light
