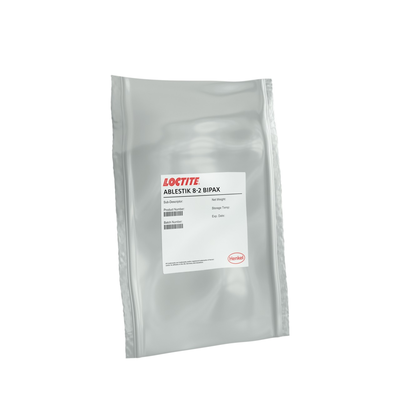

LOCTITE ABLESTIK 8-2
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Thermally conductive
- Positive under UV light
- For MEMs packages
Product Description
LOCTITE ABLESTIK 8-2 non-conductive die attach adhesive is designed for MEMs package applications. Designed as an instrument adhesive, LOCTITE ABLESTIK 8-2 adhesive offers eight times the thermal conductivity of unfilled epoxies. Bonds made with LOCTITE ABLESTIK 8-2 can withstand continuous exposure @ 150 °C and intermittent exposure @ 200°C.
Cure Schedule
- 1.5hours @ 95ºC
- 45 minutes @ 120°C or
- 4 hours @ 75°C or
- 24 hours @ 60°C
8-2
1. Select Package Type
2. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 30 days
Shipping in 12 weeks
Shipping in 55 days
Shipping in 30 days Shipping in 12 weeks Shipping in 55 daysPackaging
Please select Package Type and Package Size before adding your product to your cart.
TDS, SDS & Technical Documents
- ABLESTIK 8-2-EN
- 1190127_MSDS_UT_US_EN
Technical Specifications
General Properties
Specific Gravity Specific Gravity
2.3 Work life @25°C Work life @25°C
4 hours Thermal Properties
Glass Transition Temperature (Tg) Glass Transition Temperature (Tg)
92 °C Thermal Conductivity Thermal Conductivity
1.5 W/m.K Weight Loss @ 300°C Weight Loss @ 300°C
0.1 %
