AEMION+™ - AF3-HWK9-75
Harmonization Code : 3914.00.90 | Ion-exchangers based on polymers of headings 39.01 to 39.13, in primary forms.
Main features
- Water Electrolysis
- Acid Recovery and Salt Splitting
- 75 micron thick membrane with woven PEEK reinforcement
Product Description
AEMION+™-AF3-HWK9-75 is a breakthrough advanced polyimidazolium-based ion exchange membrane that enables the rapid growth of the hydrogen economy. Ionomr's Aemion+® anion exchange membranes are significantly more durable than our competitors', leading to thinner membranes, longer service life and reduced overall system costs.
AEMION+™ membranes have low ionic resistance and high electrical resistance. They are the first available commercial materials with excellent chemical stability in solutions of both high and low pH, and even in the harshest alkaline electrolysis systems (2–3M KOH, 80-100 °C). These advanced anion exchange membranes are frontiers in materials science with their unique hydrocarbon structure and good mechanical strength. All of these desirable properties unlock other potential applications that were previously constrained by the membrane’s poor durability and integrity. AEMION+™ is the enabling, platform material for the scale-up of AEMWE technology to industrial level.
With its excellent chemical stability at the full pH spectrum (0–14), AEMION+™-AF3-HWK9-75 can also be used in acid receovery and salt splitting applications. Aemion+® anion exchange membranes exhibit high oxidative tolerance, selectivity, and extended maintenance cycles, contributing to extended system lifetimes. AEMION+™-AF3-HWK9-75 demonstrates slightly lower proton blocking at high acid concentrations compared to other purpose-built AEMs. Still, it demonstrates significantly lower resistance and total power consumption per mole of acid, making them effective in concentrating applications (i.e., removal of total sulfate to 0 from a stream), and in use for acid concentration up to 5–7 wt%.
AF3-HWK9-75
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 6 weeks
Shipping in 6 weeks
Shipping in 6 weeksPackaging
TDS, SDS & Technical Documents
- FM-6063-B Properties of 3rd-Gen Aemion+ Water Electrolysis Membranes-3rd Gen 2023-01-11
- FM-7008-G Aemion+ Safety Data Sheet (SDS)
- FM-7046-C-3rd-Gen-Aemion-Pretreatment-Dispersion-and-Ink-Formulation-of-AF3-HWK9-75-2023-01-11
Technical Specifications
General Properties
Thermal Properties
Mechanical Properties
Physical Properties
Hydrolytic Properties
Additional Information
AEMION+® Enables Large-Scale Commercial Development of Water Electrolyzers
Alkaline water electrolysis (AWE) uses a liquid KOH/NaOH electrolyte between electrodes separated by a porous diaphragm. It benefits from low-cost catalysts but suffers from higher internal resistance and typically lower current densities.
Proton exchange membrane water electrolysis (PEMWE) is compact and efficient due to high H+ conductivity, but the acidic environment drives reliance on PGM catalysts—raising CAPEX and OPEX.

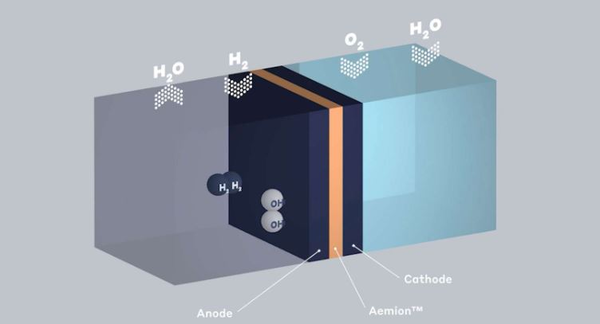

This motivates a technology that blends AWE’s inexpensive catalysts with PEMWE’s compact zero-gap design: alkaline anion exchange membrane water electrolysis (AEMWE/AAEMWE). Using an anion exchange membrane enables low-cost catalysts while maintaining a compact architecture. At current scales, AWE and PEMWE CAPEX exceed DOE targets; AEMWE offers a pathway to lower CAPEX and competitive green hydrogen. Developing high-performance, stable AEMs is central to this transition.
| Description | AWE | PEMWE | AEMWE |
|---|---|---|---|
| Technology readiness | ✓ | ✓ | ✕ |
| Non-PGM loading | ✓ | ✕ | ✓ |
| Long-term stability | ✓ | – | ✕ |
| MW scale | ✓ | ✓ | ✕ |
| Compact design | ✕ | ✓ | ✓ |
| Current density | ✕ | ✓ | ✓ |
| Cost effective | – | ✕ | ✓ |
| Operating pressure | ✕ | ✓ | ✓ |
| Non-corrosive environment | ✕ | ✕ | ✓ |
|
At 1 MW, AWE ($1279/kW) and PEMWE ($1168/kW) are similar, while AEMWE with AEMION+® is lower at $931/kW and $926/kW (without/with PGM). At 5 MW, all costs drop but AEMWE remains lowest ($444–459/kW). The pathway to low-cost, sustainable electrolysis is enabled by continued AEMWE advances. |
CAPEX at 5 MW
|
CAPEX at 1 MW
|
Zero Degradation Found in Latest Test of Aemion+® Alkaline Membrane
Background. A 50 cm2 cell using Aemion+® membranes and long-life alkaline electrodes has been on-test for 2500 h at the 2024 EU target current density (0.6 A cm−2), building on >7500 h prior tests with <0.6%/1000 h post break-in system degradation and <0.05%/1000 h measurable membrane degradation.
Results. Cells showed no detectable membrane degradation (<0.05%), with total system degradation <0.4%/1000 h—surpassing the EU Clean Hydrogen JU 2024 target of 0.9%/1000 h. Most losses came from electrodes/porous metal transport elements; removing the porous metal improved outcomes. Ionomr continues optimization with NREL under Shell GCxN. NREL reports Ionomr MEAs >1 A cm−2 at 2 V in hydroxide electrolyte without iridium and stable >500 h. See the latest press release.
Key Specifications of AF3-HWC9-75-X
| Membrane Type | Typical Thickness (µm) | IEC1 (meq/g) | Reinforcement |
|---|---|---|---|
| AF3-HWC9-70-X |
75
nominal
|
1.9 – 2.7 | Woven PEEK |
| Property | MD | TD | Test Method |
|---|---|---|---|
| Physical Properties2 | |||
| Tensile Strength, MPa | 54–60 | 53–58 | ASTM 638 |
| Young’s Modulus, MPa | 600–670 | 600–650 | ASTM 638 |
| Elongation to Break, % | 24–30 | 20–28 | ASTM 638 |
| Hydrolytic Properties3 | |||
| Water Uptake to water soaked, 80 °C |
< 15% | ASTM D570 | |
| Linear Expansion to water soaked, 80 °C |
< 3% | ASTM D570 | |
| Z-Expansion to water soaked, 80 °C |
< 8% | ASTM D570 | |
| Electrochemical Properties | |||
| Area Resistance, mΩ·cm² | < 190 | Internal4 | |
| Hydrogen Permeability, NµL·cm⁻²·min⁻²·bar⁻² |
< 3.5 | Note5 | |
| Chemical Stability | |||
| Recommended Condition | 0.1–2 M KOH, ≤90 °C | Internal6 | |
| Other Properties | |||
| Maximum Processing Temperature | 150 °C | — | |
| Polymer Tg | > 300 °C | — | |
| Counter-ions as Produced | I- / Cl- | — | |
- Polymer IEC in the hydroxide (OH−) counter-ion form.
- Measured at 22 °C, fully hydrated.
- Conditioned in 1 M NaCl for 24 h, then DI H2O for 6 h; tested fully submerged at room temperature.
- Hydrogen permeability measured electrochemically under internal reference conditions; verify in end-use systems.
- Guidance from steady-state measurements of strength, conductivity, and IEC in exchanged KOH electrolyte.
- Tg determined by TGA at 2 °C/min in the as-produced form; polymer can be rendered stable > 200 °C—contact Ionomr for higher-temperature use.

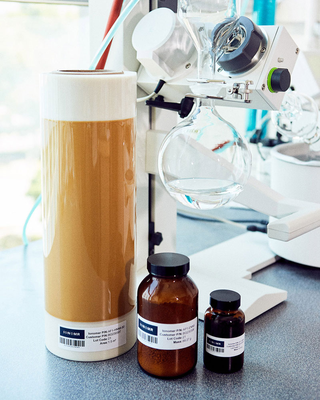

AEMION+® Reinforced Membranes — Handling, Storage & Pre-treatment
Membranes ship dry in chloride/iodide form. Depending on application, assembly may be done in the dry form or after pre-treatment. Exchange to the operating ionic form while assembled, as required by your device chemistry.
The following protocol outlines the recommended activation and handling steps for water electrolysis applications. Adjust electrolyte volume, temperature, and duration as necessary for your system scale and QA criteria.
Recommended Activation & Handling Steps before use in Water Electrolysis
Activation 1 — Iodide/Chloride → Nitrate Form Exchange
Depending on the assembly method, perform the iodide/chloride-to-nitrate exchange either ex situ (wet) or in situ (dry) using one of the protocols below.
| ACTIVATION STEP 1 — For wet membrane assembly: Iodide/Chloride → Nitrate form ex situ | |||||
|---|---|---|---|---|---|
| Protocol | Temp (°C) | Electrolyte | Volume ratio (mLelectrolyte/cm²AEM) | Recirculation? | Min time (hours) |
| Standard (room temp.) | RT | 3 M NaNO₃ | 0.5 | No | ≥ 2 |
| ACTIVATION STEP 1 — For dry membrane assembly: Iodide/Chloride → Nitrate form in situ | |||||
|---|---|---|---|---|---|
| Protocol | Temp (°C) | Electrolyte | Volume ratio (mLelectrolyte/cm²AEM) | Recirculation? | Min time (hours) |
| Standard (room temp.) | RT | 1 M NaNO₃ | 30 | Yes, 100 mL/min | ≥ 6 |
Activation 2: Nitrate → Hydroxide
Convert the nitrate form to hydroxide under the following standard conditions:
| ACTIVATION STEP 2 — Nitrate to Hydroxide Form | |||||
|---|---|---|---|---|---|
| Protocol | Temp (°C) | Electrolyte | Volume ratio (mLelectrolyte/cm²AEM) | Stirring? | Min time (hours) |
| Standard (room temp.) | RT | 1 M KOH | 2 | No | ≥ 4 |
Check conversion & electrical readiness
Verify ionic form by XRF/EDS or similar analytical method. Beginning-of-life HFR should be ≤ 200 mΩ·cm².
Mounting
Prefer mounting wet to avoid differential stresses from drying.
Recommended Activation & Handling Steps before use in Fuel Cells
For AEM fuel cell applications use the following general pre-treatment approach:
- Soak for at least 24 hours, and up to 36–48 hours is recommended.
- Exchange into KOH first may aid subsequent exchanges (e.g., sulfate).
Removal of the Membrane from the Backing Layer
- With clean gloved hands, hold the membrane on its backing layer.
- Using a thumb or finger, rub against the corner edge of the membrane to produce separation from the backing layer.
- Once corner separation is achieved, carefully and gently pull the membrane from the backing while holding the backer on a clean, dry surface.
- Support the membrane as you peel until it has been fully removed.
- With clean gloves, wet a portion of the membrane/backing edge with de-ionized water to aid separation. Repeat the primary method.
- If separation does not start, spritz a small amount of water near the edge and try again.
For coating AEMION® membranes after removing from the backing layer
Ensure that the membrane remains flat.
A powder-coating masking tape can be used to overlap the membrane edges prior to coating to stabilize the membrane and minimize stress lines.
Use caution when removing tape after coating, as tears may occur. Cutting off the taped section is an alternative.
Use caution to remove tape from the membrane after the coating process.
Roll unwind orientation (base film facing out)
Related Presentations
Related Blogs
How Pretreatment Affects Ion Exchange Membranes for Electrochemical Devices
This blog explores how pretreatment processes influence the performance of ion exchange membranes in electrochemical devices, highlighting the importance of proper conditioning to achieve consistent efficiency and durability.
Non-Disclosure Agreement
This is a proprietary product from Ionomr; a signed NDA between the end customer and Ionomr is required before shipment for either commercial use or research.
The NDA prevents reverse engineering and public disclosure. It does not restrict patenting, but treats the physical materials and their composition as confidential—preventing specific disclosure in a patent or otherwise—while still allowing reference to an AEM (e.g., Aemion) by trade name. Test results are confidential and require approval from both parties for disclosure. We are not concerned about blocking publications and will advise if better results appear achievable.
We also use a more explicit Materials Transfer Agreement (MTA) for academic or research organizations that further details materials IP and publication. Please find the NDA here and include it when requesting quotations.
