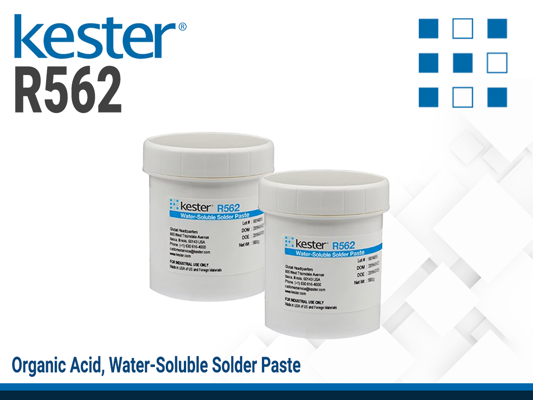

KESTER R562 Solder Paste
Harmonization Code : 3810.10.00 | Soldering, brazing or welding powders and pastes consisting of metal and other materials
Main features
- Reduces BGA voiding
- 12-hour stencil life
- Consistent printing
Product Description
KESTER R562 is an organic acid, water-soluble solder paste specifically designed for resistance to environmental extremes. Water-soluble pastes tend to dry out in low relative humidity and slump at high relative humidity. R562 will maintain its print characteristics, tack and activity even after exposure to environmental extremes.
Product Key Features
- Reduces BGA voiding
- 12-hour stencil life
- Print speeds up to 6 in/sec
- Consistent printing
Applications
- Stencil printing & enclosed head printing (90% metal)
Packaging
TDS, SDS & Technical Documents
- Kester-R562-Solder-Paste-SDP-TDS
- Kester-R562-Solder-Paste-SDP-SDS
Technical Specifications
General Properties
Additional Information
Reflow Profile
The recommended reflow profile for R562 made with either the Sn63Pb37 or Sn62Pb36Ag02 is shown here. This profile is simply a guideline. Since R562 is a highly active solder paste, it can solder effectively over a wide range of profiles. Your optimal profile may be different from the one shown based on your oven, board and mix of defects. Please contact us if you need additional profiling advice.
Peak Temp: 219–230 °C
Zones:
- Soaking Zone: 170–180 °C, 60–90 sec typical
- Reflow Zone: 6–75 sec typical
Time to Peak Temperature: 3.5–6 min typical
Ramp-up: <1.5 °C/sec
